Aprilia SR50R - Service manual > Air Filter

REMOVING THE AIR FILTER AND THE AIR BOX IE361 - IE50

REMOVING THE AIR FILTER IE 361 - IE 50

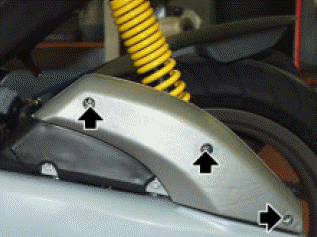

• Loosen and remove the three screws.

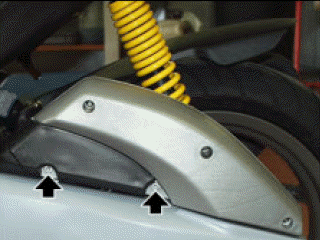

• Loosen and remove the two screws, collect the washers and the spacers.

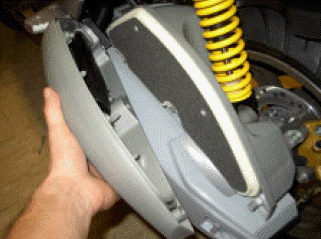

• Move the cover aside, do not disconnect the air intake line.

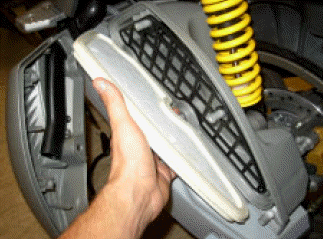

• Remove the air filter.

REMOVING THE AIR BOX IE 361 - IE 50

• Loosen and remove the two screws, collect the washers and the spacers.

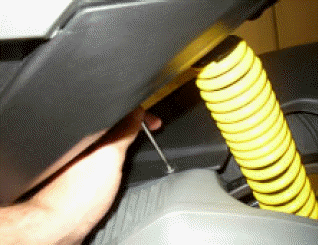

• Loosen and remove the rear mudguard screw.
• Disconnect the air intake line.

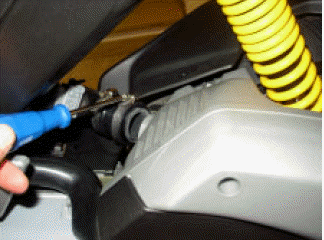

• Loosen the clamp and remove the throttle body intake hose.
• Remove the air box.

REMOVING THE AIR FILTER AND THE AIR BOX C364

REMOVING THE AIR FILTER C364

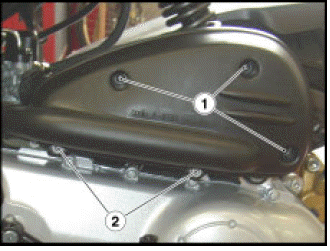

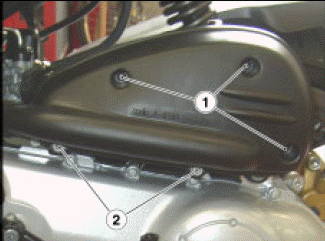

• Loosen and remove the three screws (1).
• Loosen and remove the two screws (2), collect the washers.

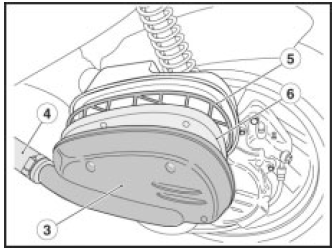

WARNING Do not force during removal. The air box cover (3) stays connected to the line (4).

• Partially remove the air box cover (3).
• Remove the mesh (5).
• Remove the filter (6).

REMOVING THE AIR BOX C364

• Loosen and remove the two screws (2), collect the washers.

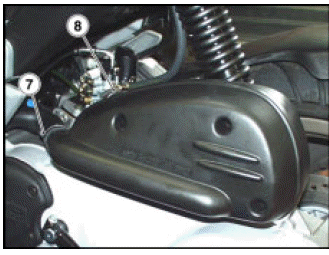

• Loosen the tie (7).
• Disconnect the air intake line.
• Loosen the clamp (8) and remove the carburetor intake hose.
• Remove the air box.
