Kymco Agility 50 - Service manual > Camshaft removal
Remove the center cover. Remove the frame center.

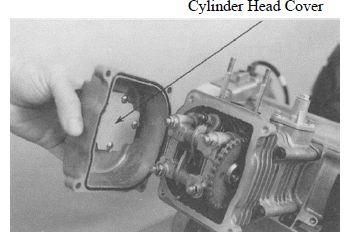

Remove the four cylinder head cover bolts to remove the cylinder head cover.

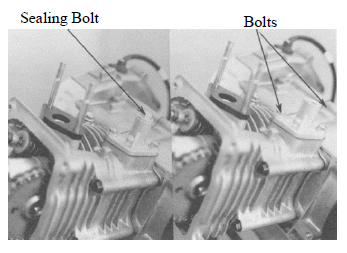

Remove the cam chain tensioner sealing bolt and spring.
Remove the two bolts attaching the cam chain tensioner and the tensioner.

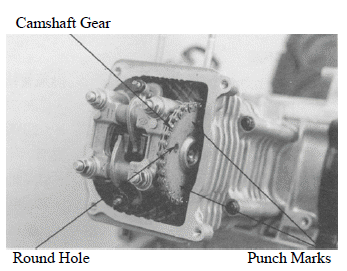

Turn the flywheel counterclockwise so that the "T" mark on the flywheel aligns with the index mark on the crankcase to bring the round hole on the camshaft gear facing up to the top dead center on the compression stroke.
Remove the two cylinder head bolts.

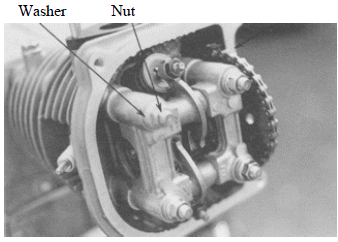

Remove the four cylinder head nuts and washers.

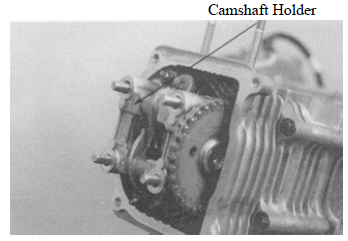

Remove the camshaft holder.
Diagonally loosen the cylinder head nuts in 2 or 3 times.

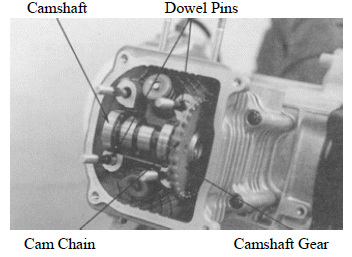

Remove the camshaft holder and dowel pins.
Remove the camshaft gear from the cam chain and remove the camshaft.
CAMSHAFT INSPECTION
Check each cam lobe for wear or damage.

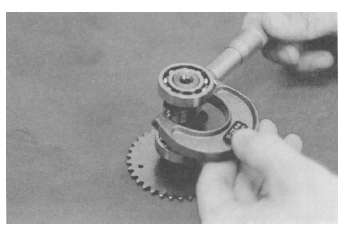

Measure the cam lobe height.
Service Limits:
IN : 26.038mm replace if below
EX: 25.407mm replace if below

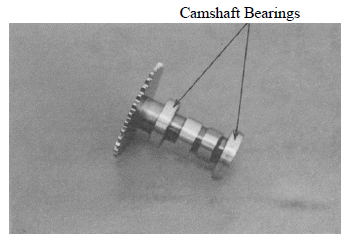

Check each camshaft bearing for play or damage. Replace the camshaft assembly with a new one if the bearings are noisy or have excessive play.
CAMSHAFT HOLDER DISASSEMBLY

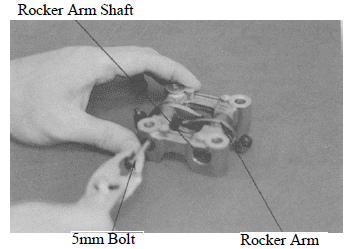

Take out the valve rocker arm shafts using a 5mm bolt.

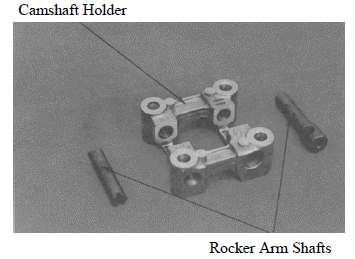

Remove the valve rocker arms.
CAMSHAFT HOLDER INSPECTION
Inspect the camshaft holder, valve rocker arms and rocker arm shafts for wear or damage.
If the valve rocker arm contact surface is worn, check each cam lobe for wear or damage.

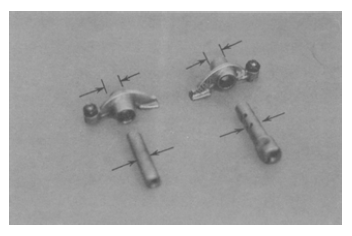

Measure the I.D. of each valve rocker arm.
Service Limits:
IN:10.10mm replace if over
EX:10.10mm replace if over
Measure each rocker arm shaft O.D.
Service Limits:
IN: 9.91mm replace if over
EX: 9.91mm replace if over
