Kymco Agility 50 - Service manual > Final Reduction

SERVICE INFORMATION

SPECIFICATIONS

Specified Oil: GEAR OIL SAE 90#
Oil Capacity:
  At disassembly : 0.11 liter
  At change : 0.10 liter

SPECIAL TOOLS

Bearing puller, 10,12,15,18mm

TROUBLESHOOTING

Engine starts but motorcycle won't move

• Damaged transmission
• Seized or burnt transmission
• Faulty drive belt
• Faulty clutch

Abnormal noise

• Worn, seized or chipped gears
• Worn bearing

Oil leaks

• Oil level too high
• Worn or damaged oil seal

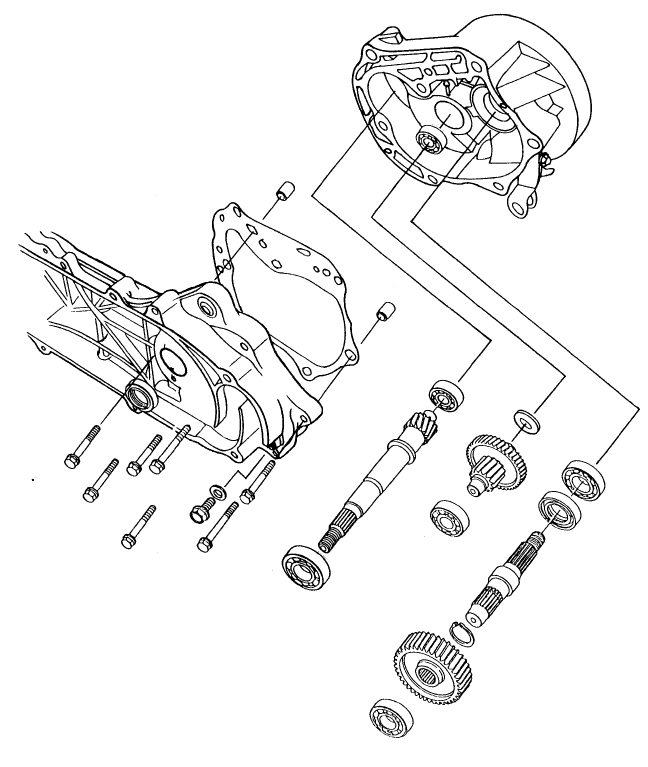

FINAL REDUCTION DISASSEMBLY

Remove the rear brake cable. Remove the rear wheel.

Remove the left crankcase cover. Remove the clutch/driven pulley.

Drain the transmission gear oil into a clean container.

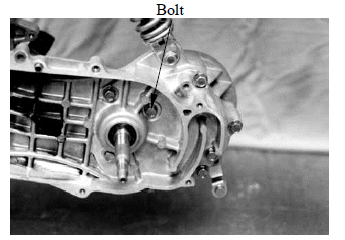

Remove the transmission case cover attaching bolts.

Remove the transmission case cover.

Remove the gasket and dowel pins.

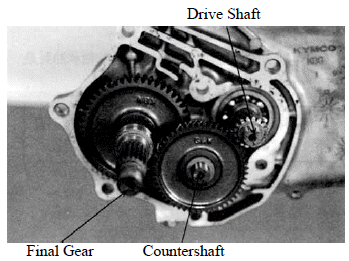

Remove the final gear and countershaft.

FINAL REDUCTION INSPECTION

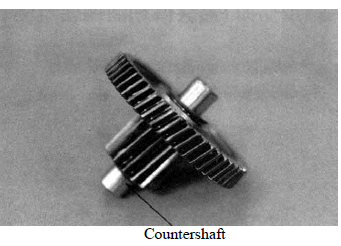

Inspect the countershaft and gear for wear or damage.

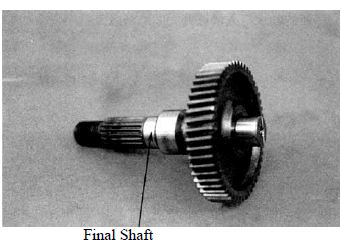

Inspect the final gear and final shaft for wear, damage or seizure.

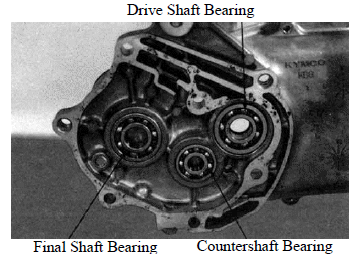

Check the left crankcase bearings for excessive play and inspect the oil seal for wear or damage.

Inspect the drive shaft and gear for wear or damage.

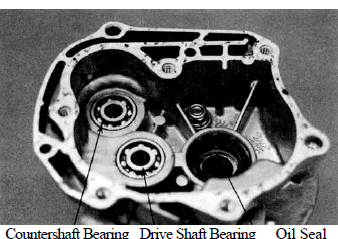

Check the transmission case cover bearings for excessive play and inspect the final shaft bearing oil seal for wear or damage.

Do not remove the transmission case cover except for necessary part replacement.

When replacing the drive shaft, also replace the bearing and oil seal.

BEARING REPLACEMENT

(TRANSMISSION CASE COVER)

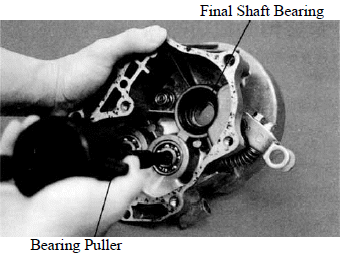

Remove the transmission case cover bearings using a bearing puller.

Remove the final shaft oil seal.

Bearing Puller

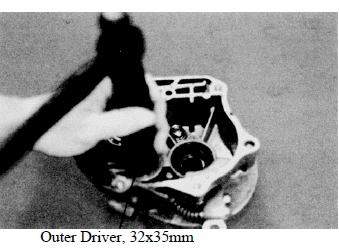

Drive new bearings into the transmission case cover.

BEARING REPLACEMENT (LEFT CRANKCASE)

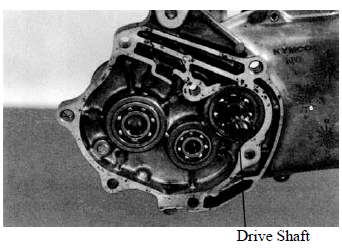

Remove the drive shaft.

Remove the drive shaft oil seal.

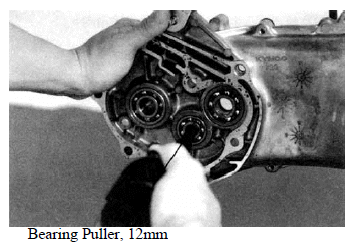

Remove the left crankcase bearings using a bearing puller.

Bearing Puller

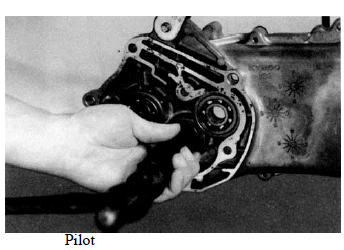

Drive new bearings into the left crankcase.

Install a new drive shaft oil seal.

FINAL REDUCTION ASSEMBLY

Install the drive shaft into the left crankcase.

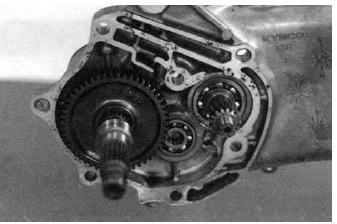

Install the final gear and final shaft into the left crankcase.

Install the countershaft and gear into the left crankcase.

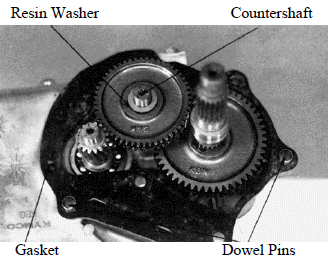

Install the resin washer onto the countershaft.

Install the dowel pins and a new gasket.

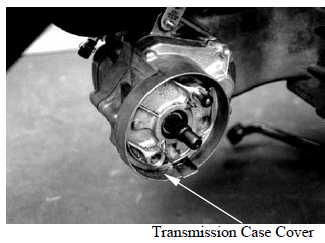

Install the transmission case cover.

Install and tighten the transmission case cover bolts.

Install the clutch/driven pulley.

After installation, fill the transmission case with the specified oil.

• Place the motorcycle on its main stand on level ground.
• Check the oil sealing washer for wear or damage.

Specified Gear Oil: SAE90#
Oil Capacity:
  At disassembly : 0.11 liter
  At change : 0.10 liter

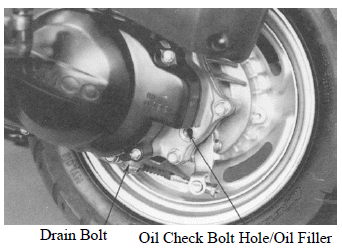

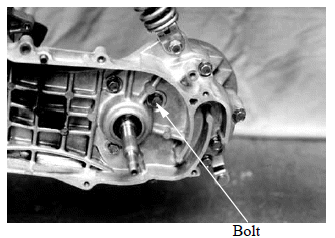

Install and tighten the oil check bolt.

Torque: 0.8~1.2kgf-m

Start the engine and check for oil leaks.

Check the oil level from the oil check bolt hole and add the specified oil to the proper level if the oil level is low.
