Kymco Agility 50 - Service manual > Final reduction gear oil

OIL LEVEL CHECK

Place the motorcycle on its main stand on level ground for oil level check.

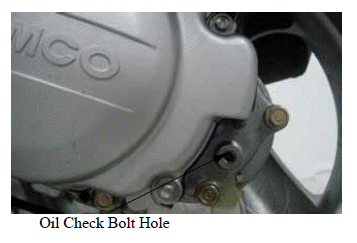

Stop the engine and remove the oil check bolt.

The oil level shall be at the oil check bolt hole.

If the oil level is low, add the recommended oil to the proper level.

Recommended Oil: SAE90#

Install the oil check bolt.

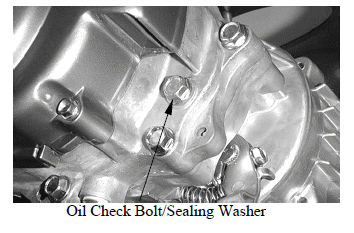

Make sure that the sealing washer is in good condition.

OIL CHANGE

Remove the oil check bolt.

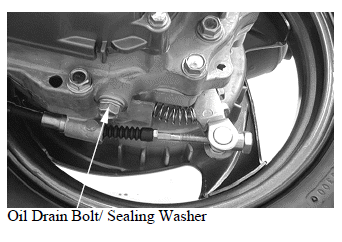

Remove the oil drain bolt and drain the oil thoroughly.

Install the oil drain bolt.

Torque: 0.8~1.2kgf-m

Make sure that the sealing washer is in good condition.

Fill with the recommended oil.

Oil Capacity:

At disassembly : 0.11 liter
At change : 0.10 liter

Reinstall the oil check bolt and check for oil leaks.

Torque:0.8~1.2kgf-m

DRIVE BELT

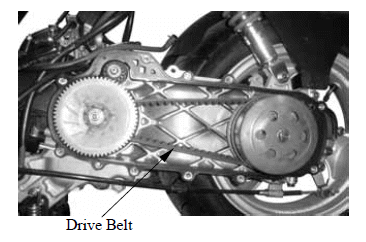

Remove the left crankcase cover. Inspect the drive belt for cracks or excessive wear.

Replace the drive belt with a new one if necessary and in accordance with the Maintenance Schedule.

BRAKE SHOE

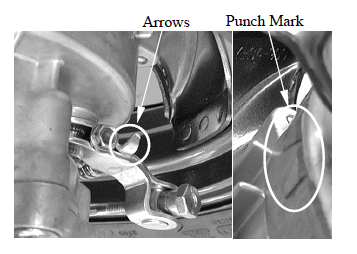

Replace the brake shoes if the arrow on the wear indicator plate aligns with the punch mark on the brake panel when the brake is fully applied.

REAR BRAKE

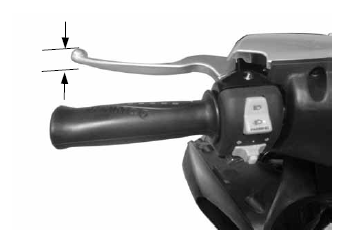

Measure the rear brake lever free play.

Free Play: 10-20mm

BRAKE ADJUSTING NUT

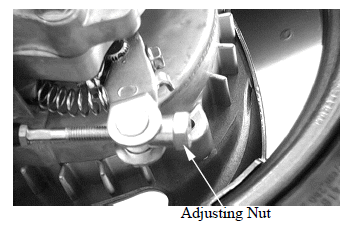

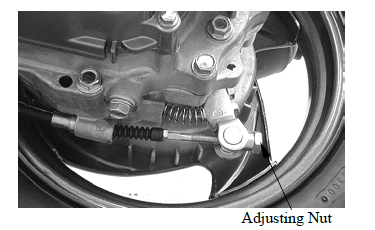

If the free play do not fall within the limit, adjust by turning the adjusting nut.

BRAKE FLUID

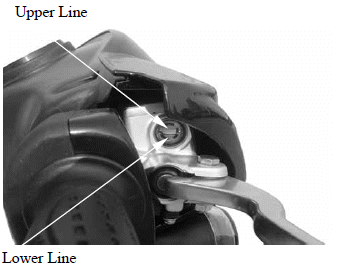

Turn the steering handlebar upright and check if the rear brake fluid level should be between the upper and lower level lines.

Specified Brake Fluid: DOT-4

If the free play do not fall within the limit, adjust by turning the adjusting nut.

HEADLIGHT AIM

Turn the ignition switch ON and start the engine.

Turn on the headlight switch.

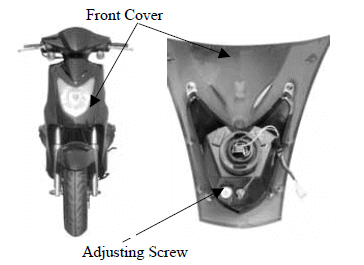

Adjust the headlight aim by turning the headlight aim adjusting screw.
