Kymco Agility 50 - Service manual > Fuel tank

FUEL TANK REMOVE

Remove the net-in box. Remove the frame center cover.

Remove the frame body cover.

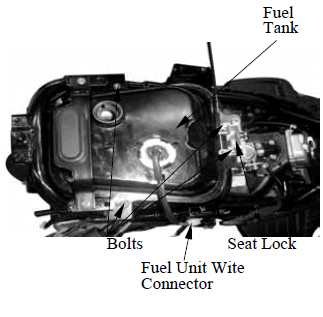

Remove the four bolts on the fuel tank, take the upper seat lock off.

Disconnect the fuel unit wire connector.

Remove the fuel tank.

The installation sequence is the reverse of removal.

FUEL STRAINER REMOVAL

Remove the fuel strainer from the fuel tank.

INSPECTION

Inspect if the fuel strainer is clogged and clean it with compressed air.

• When removing the fuel strainer, do not allow flames or sparks near the working area and drain the residual gasoline into a container.

INSTALLATION

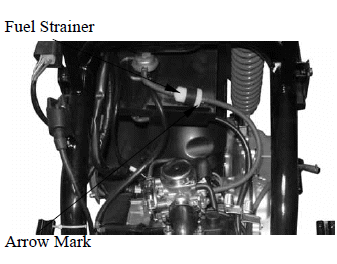

Install the fuel strainer with its arrow mark toward the fuel pump.

FUEL UNIT

REMOVAL

Remove the related parts.

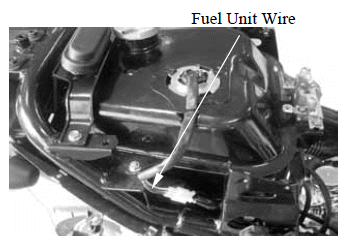

Disconnect the fuel unit wire connector.

Turn the fixed plate on the fuel unit, take the fuel unit off.

• Do not bend the float arm on the fuel unit, otherwise the figure on the fuel meter will not correct.

INSTALLATION

Inspet if the fuel unit is damaged, or harden.

Assemble the fuel unit in the reverse order of disassembly.

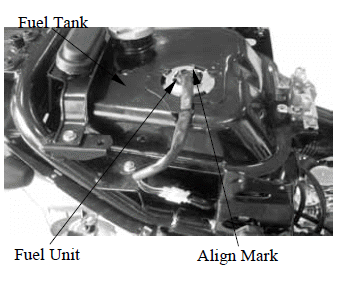

• Align the groove on the fuel unit with the angle on the fuel tank.
• Inspect if the fuel tank leaked after installing and filling the gasoling.

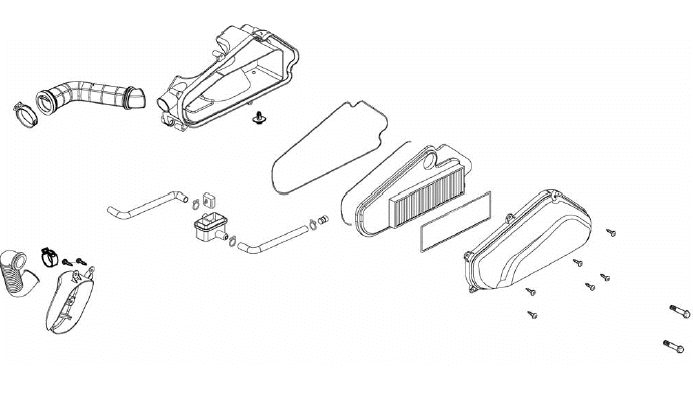

AIR CLEANER

Loosen the air cleaner connecting tube band screw.

Disconnect the clinhead cover breather tube from the air cleaner.

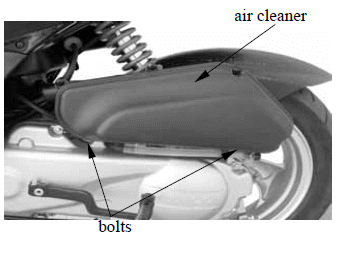

Remove the two bolts and air cleaner case.

The installation sequence is the reverse of removal.
