BMW R 1250 RT - Owner's Manual > Fuses

Replace fuses

• Switch off the ignition.
• Removing front seat.
• Pull off connector 1.

ATTENTION Jumpering of blown fuses

Risk of short-circuit and fire

• Never attempt to jumper a blown fuse.
• Always replace a defective fuse with a new fuse of the same amperage.



• Replace faulty fuse in accordance with layout plan.

NOTICE If fuse defects recur frequently have the electric circuits checked by a specialist workshop, preferably an authorised BMW Motorrad dealer.

• Install plug 1.
• Installing front seat.

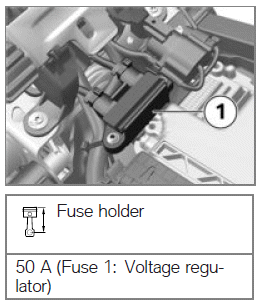

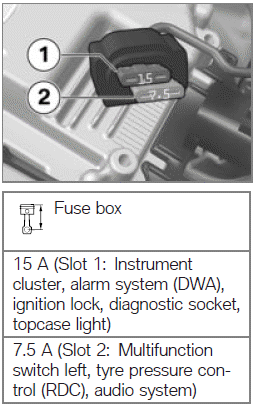

Fuse assignment

Diagnostic connector

Disengaging diagnostic connector

CAUTION Incorrect procedure followed when loosening the diagnostic connector for the on-board diagnosis

Motorcycle experiences malfunctions

• Only have the diagnostic connector loosened by a specialist workshop or other authorised persons during your next BMW Service appointment.
• Have the work performed by appropriately trained staff.
• Refer to the vehicle manufacturer specifications.



• Removing battery cover.

• Press the hook 1 and pull out the diagnostic connector 2 towards the top.

• Press the locks 3 on both sides.
• Loosen the diagnostic connector 2 from the bracket 4.
• The interface to the diagnosis and information system can be connected to diagnostic connector 2.

Securing the diagnostic connector

• Disconnect the interface for the diagnosis and information system.

• Insert the diagnostic connector 2 into the bracket 4.
• The locks 3 engage on both sides.
• Connect the bracket 4 to the mounting 1.

• Make sure the hook 5 engages.
• Installing the battery cover.
