BMW R 1250 RT - Owner's Manual > General views

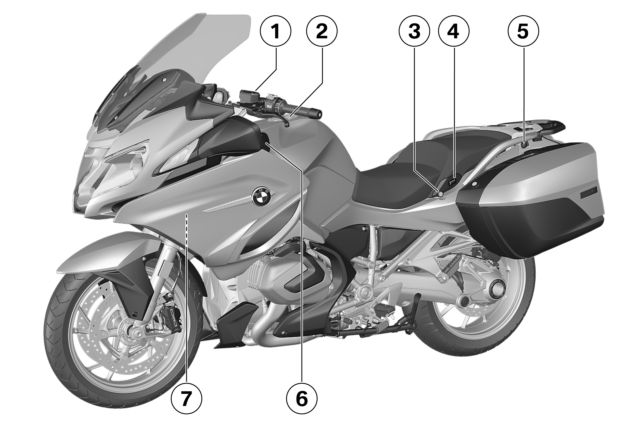

General view, left side

1. Clutch-fluid reservoir
2. Fuel filler neck
3. Seat lock
4. Passenger seat heating
5. 2nd socket
6. Storage compartment, left
7. Payload table
   Table of tyre pressures

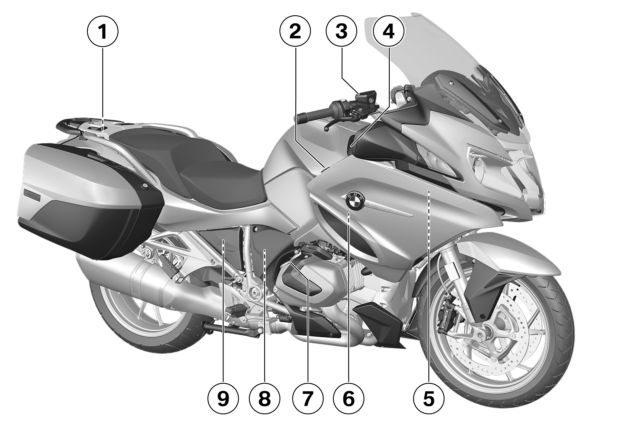

General view, right side

1. Rider's manual
2. Power socket
3. Brake-fluid reservoir, front
4. Storage compartment, right
5. Vehicle identification number (on the steering-head bearing)
   Type plate (on the steering-head bearing)
6. Coolant level indicator (behind side panel)
7. Oil filler opening
8. Behind the engine spoiler:
   Battery
   Remote positive terminal
   Diagnostic connector
9. Brake fluid tank rear (behind the side trim panel)

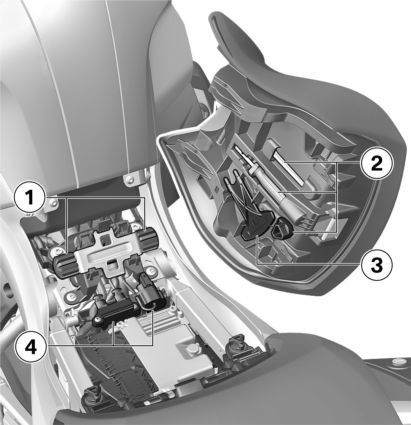

Underneath the seat

1. Adjuster for front-seat height
2. Standard toolkit
3. Tool for adjusting the spring preload
4. Fuses

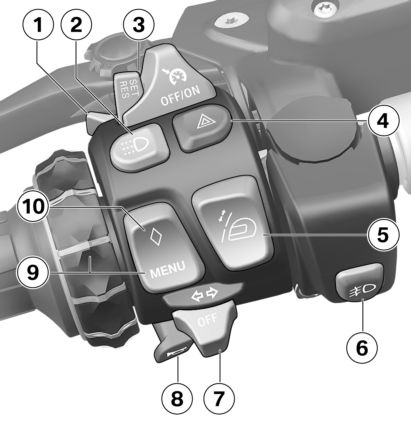

Multifunction switch, left

1. High-beam headlight and headlight flasher
2. Day run lights
3. Cruise control
4. Hazard warning lights system
5. Windscreen adjuster
6. Additional headlight
7. Turn indicators
8. Horn
9. Multi-Controller and MENU button
   Multifunction display
   ASC
   - with riding modes Pro OE
   DTC
   - with Dynamic ESA OE
   D-ESA
   - with audio system OE
   Audio system (see relevant operating instructions)
10. Favourite menu

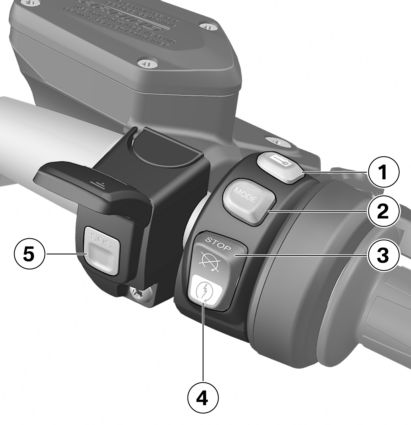

Multifunction switch, right

- with intelligent emergency call OE

1. with central locking system OE
   Lock
2. Selecting the riding mode
3. Emergency off switch (kill switch)
4. Starting the engine
5. Intelligent emergency call

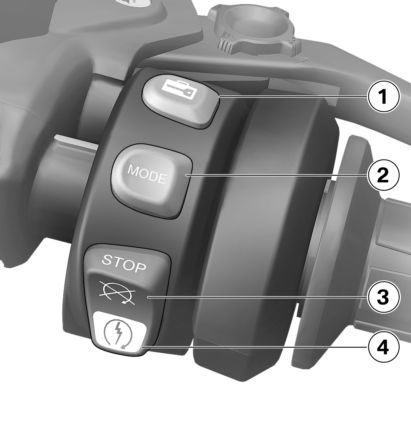

Multifunction switch, right

- without intelligent emergency call OE

1. with central locking system OE
   Lock
2. Riding mode
3. Emergency off switch (kill switch)
4. Starting the engine

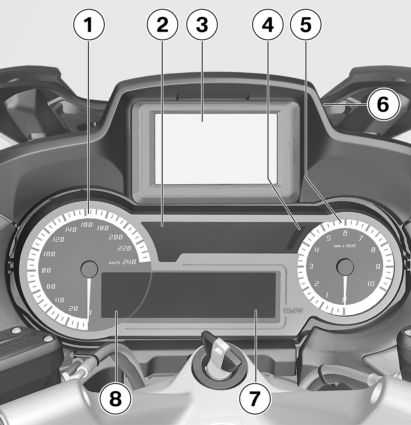

Instrument panel

1. Speedometer
2. Indicator and warning lights
3. Navigation system
4. Photosensor (for adapting the brightness of the instrument lighting)
5. Engine speed display
6. Unlocking for navigation shaft
7. Multifunction display
8. Trip recorder

NOTICE The brightness of the warning lights and indicator lights, the display and the instrument needle and gauge lighting is adapted automatically to suit ambient brightness.
