Aprilia SR50R - Service manual > Introduction

FOREWORD

• This manual provides the information required for normal servicing.
• This manual is intended for use by aprilia Dealers and their qualified mechanics; certain information has been omitted intentionally, as this manual does not purport to provide a comprehensive treatise on mechanics. The persons who will use this manual must be fully conversant with the basics of mechanics and with the basic procedures of motorcycle repair. Repairing or inspecting a motorcycle when one does not possess such basic knowledge or training could result in improper servicing and make the motorcycle unsafe to ride. For the same reason, certain basic precautions have been omitted in the descriptions of repair and inspection procedures; you are therefore invited to take special care to avoid damage to motorcycle components or injury to persons. aprilia s.p.a.'s mission is to constantly enhance the riding pleasure of final users through the ongoing improvement of its products as well as of the relevant technical literature. All aprilia Dealers and Subsidiaries worldwide are kept updated on major engineering changes and modifications to repair procedures. Such changes and modifications are then reflected in the next release of the relevant manual. In case of need or doubt regarding repair and inspection procedures, contact the aprilia SERVICE DEPARTMENT, which will be pleased to help, as well as providing you with updates and technical modifications regarding the vehicle.

aprilia s.p.a. reserves the right to make changes to its products at any time, barring any such changes as may alter the essential features of a product as specified in the relevant manual.

All rights of storage using electronic means, reproduction and total or partial adaptation, whatever the means adopted, are reserved in all countries.

The mention of third parties products is only made for information purposes, and constitutes no engagement.

aprilia s.p.a. is not liable in any way for the performance or use of these products.

For more details, see (REFERENCE MANUALS).

First edition: May 2005

Produced and printed by:

DECA s.r.l.
via Vincenzo Giardini, 11 - 48022 Lugo (RA) - Italy
Tel. +39 - 0545 216611
Fax +39 - 0545 216610
E-mail: deca@vftis.spx.com
On behalf of:

aprilia s.p.a.
via G. Galilei, 1 - 30033 Noale (VE) - Italy
Tel. +39 (0)41 58 29 111
Fax +39 (0)41 58 29 190

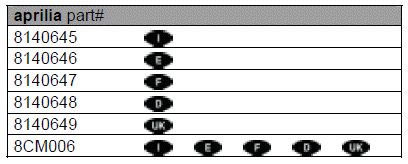

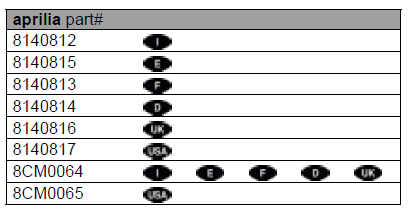

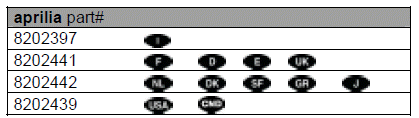

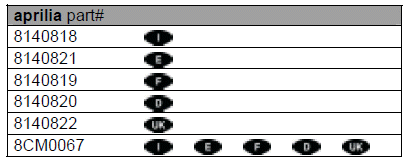

REFERENCE MANUALS

SPARE PARTS CATALOGUES

Version

Version

OWNER'S MANUALS

ENGINE WORKSHOP MANUAL

Engines

ENGINE WORKSHOP MANUAL

Engines

CHASSIS WORKSHOP MANUAL

ABBREVIATIONS/SYMBOLS/CONVENTIONS

# = number
< = is less than
> = is more than
≤ = is less than or equal to
≥ = more than or equal to
= approximately
∞ = infinite
ºC = degrees Celsius (centigrade)
ºF = degrees Fahrenheit
+- = plus or minus
AC = Alternated Current
A = Ampere
Ah = Ampere per hour
API = American Petroleum Institute
AT = High Tension
AV/DC = Anti-Vibration Double Countershaft
bar = pressure measurement (1 bar = 100 kPa)
DC = Direct Current
cc = cubic centimeters
CO = carbon oxide
CPU = Central Processing Unit
DIN = German industrial standards (Deutsche Industrie Norm)
DOHC = Double Overhead Camshaft
ECU = Electronic Control Unit
rpm = revolutions per minute
HC = unburnt hydrocarbons
ISC = Idle Speed Control
ISO = International Standardization Organization
kg = kilograms
kgm = kilogram per meter (1 kgm = 10 Nm)
km = kilometers
km/h = kilometers per hour
kΩ = kiloOhm
kPa = kiloPascal (1 kPa = 0.01 bar)
KS = clutch side (from the German "Kupplungseite")
kW = kiloWatt
l = liters
LAP = racetrack lap
LED = Light Emitting Diode
LEFT SIDE = left-hand side
m/s = meters per second
max = maximum
mbar = millibar (1 mbar = 0.1 kPa)
mi = miles
MIN = minimum
MPH = miles per hour
MS = flywheel side (from the German "Magnetoseite")
MΩ = MegaOhm
N.A. = Not Available
N.O.M.M. = Motor Octane Number
N.O.R.M. = Research Octane Number
Nm = Newton meter (1 Nm = 0.1 kgm)
Ω = ohm
PICK-UP = pick-up
BDC = Bottom Dead Center
TDC = Top Dead Center
PPC = Pneumatic Power Clutch
RIGHT SIDE = right-hand side
SAE = Society of Automotive Engineers
SAS = Secondary Air System
TEST = diagnostic check
T.B.E.I. = crowned-head Allen screw
T.C.E.I. = cheese-headed Allen screw
T.E. = hexagonal head
T.P. = flat head screw
TSI = Twin Spark Ignition
UPSIDE-DOWN = inverted fork legs
V = Volt
W = Watt
