Peugeot Speedfight - Workshop Manual > Removal of the fork

• Remove the rear shield panel. See: Procedure 5.

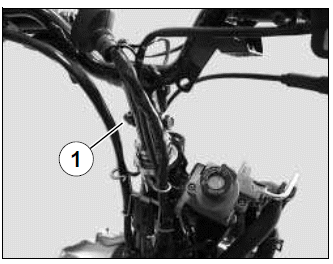

• Remove the handlebars from the fork tube.

  (1 screws and 1 nuts) (1).

When re-installing, use a new nut.

Tightening torque: 40 Nm.

• Suspend or immobilize the machine securely.
• Remove the front brake caliper from the fork tube.

Tightening torque: 45 Nm.

• Remove the front wheel.

Tightening torque: 65 Nm.

When re-installing, use a new nut.

• Remove the front mudguard.

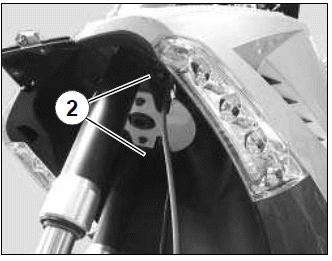

• Remove the brake control cable grommet and the speed sensor located under the fork triple clamp (2) (2 screw).

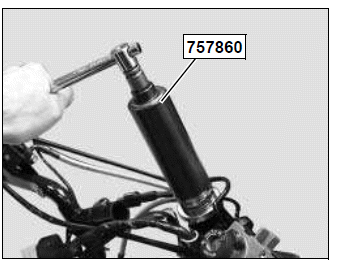

• Using tool P/N 757860 remove the steering locknut.
• Remove:
  • The lock washer.
  • The nut.
  • the rubber washer.
  • The nut.
  • The dust cover.
  • The upper cone.
• Remove the fork.
• Remove the caged ball bearings.

Replacing the steering head cups

• Replacing the steering head cups.

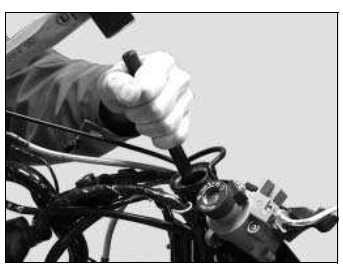

• Using a drift, remove the steering head cups.

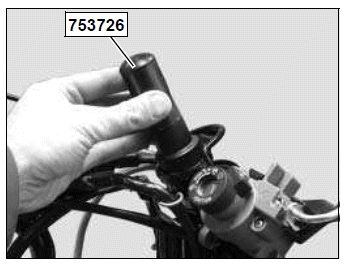

• Using push tool P/N 753726, fit a new upper cup into the steering tube.
• Using push tool P/N 7579

• Using a chisel, pry the steering head cup off by pressing the tool behind the dust cover.
• Install the following new parts:

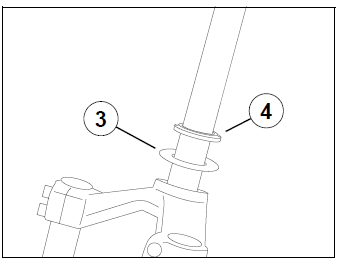

  • The dust cover (3).
  • The fork cone (4).
