GENERAL

WARNING

• Before running the engine, make sure that the working area is well-ventilated. Never run the engine in a closed area. The exhaust contains poisonous carbon monoxide gas which may cause death to people.
• Gasoline is extremely flammable and is explosive under some conditions. The working area must be well-ventilated and do not smoke or allow flames or sparks near the working area or fuel storage area.

SPECIFICATIONS

ENGINE

Throttle grip free play : 2-6mm
Spark plug gap : 0.6-0.7mm
Spark plug : NGK C7HSA

Valve clearance : IN: 0.04mm : EX: 0.04mm
Idle speed : 1900 100rpm
Engine oil capacity:
  At disassembly : 0.85 liter
  At change : 0.7 liter
Gear oil capacity :
  At disassembly : 0.11 liter
  At change : 0.10 liter

Cylinder compression : 16 kg/cm2
Ignition timing: BTDC 28  /4000rpm

CHASSIS

Front brake free play: 10-20mm
Rear brake free play : 10-20mm

TIRE PRESSURE

TIRE SIZE:

Front : 120/70-12
Rear : 130/70-12

TORQUE VALUES

Front axle nut 5.0-7.0kgf-m
Rear axle nut 11-13kgf-m

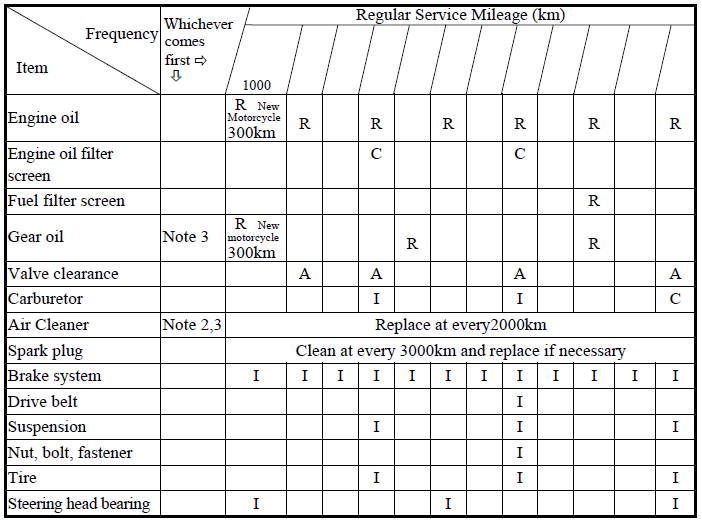

MAINTENANCE SCHEDULE

Perform the periodic maintenance at each scheduled maintenance period.

I: Inspect, and Clean, Adjust, Lubricate or Replace if necessary.

A: Adjust C: Clean R: Replace T : Tighten

• In the interest of safety, we recommend these items should be serviced only by an authorized KYMCO motorcycle dealer.

Note:

1. For higher odometer readings, repeat at the frequency interval established here.
2. Service more frequently when riding in dusty or rainy areas.
3. Service more frequently when riding in rain or at full throttle.

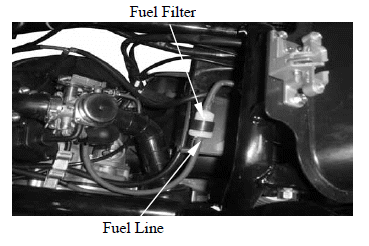

FUEL FILTER

Remove the met-in box.

Check the fuel lines and replace any parts which show signs of deterioration, damage or leakage.

Do not smoke or allow flames or sparks in your working area.
