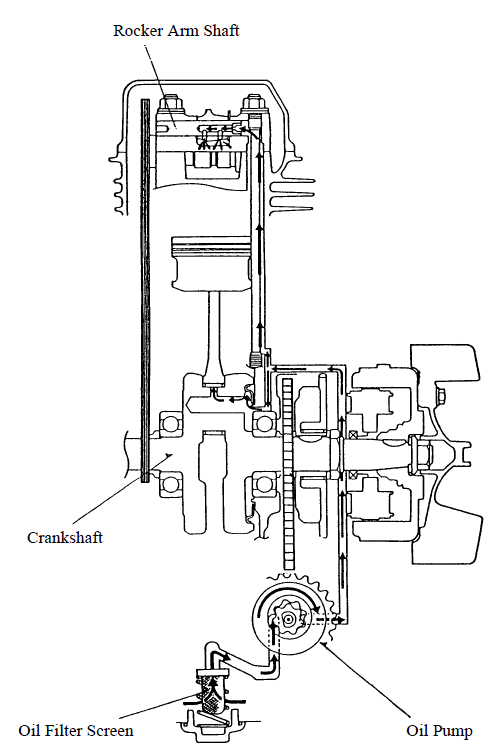

LUBRICATION SYSTEM

• Rocker Arm Shaft
• Crankshaft
• Oil Filter Screen
• Oil Pump

SERVICE INFORMATION

GENERAL INSTRUCTIONS

• The maintenance of lubrication system can be performed with the engine installed in the frame.
• Use care when removing and installing the oil pump not to allow dust and foreign matters to enter the engine and oil line.
• Do not attempt to disassemble the oil pump. The oil pump must be replaced as a set when it reaches its service limit.
• After the oil pump is installed, check each part for oil leaks.

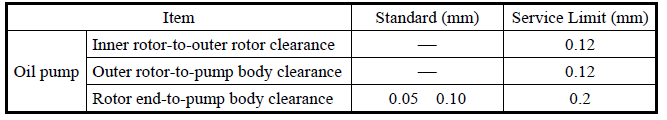

SPECIFICATIONS

TROUBLESHOOTING

Oil level too low

• Natural oil consumption
• Oil leaks
• Worn or poorly installed piston rings
• Worn valve guide or seal

Poor lubrication pressure

• Oil level too low
• Clogged oil filter or oil passages
• Not use the specified oil

ENGINE OIL/OIL FILTER

OIL LEVEL

• Place the motorcycle upright on level ground for engine oil level check.
• Run the engine for 2-3 minutes and check the oil level after the engine is stopped for 2-3 minutes.

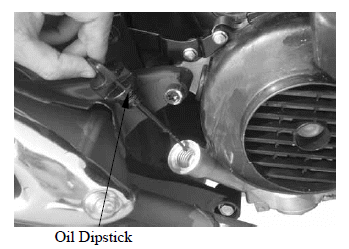

Remove the oil dipstick and check the oil level with the oil dipstick.

If the level is near the lower level, fill to the upper level with the specified engine oil.

OIL CHANGE

The engine oil will drain more easily while the engine is warm.

Remove the drain bolt to drain the engine oil thoroughly.

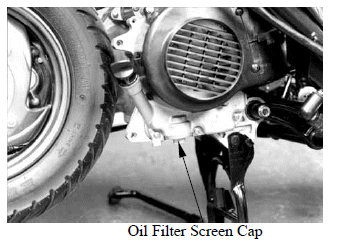

Remove the oil filter screen cap and clean the oil filter screen with compressed air.

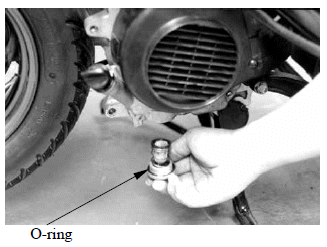

Check the filter screen O-ring for damage and replace if necessary.

Install the oil filter screen, spring and filter screen cap.

Torque: 1.0~2.0kgf-m

Fill the crankcase with the specified engine oil to the proper level.

Oil Capacity:

At disassembly : 0.85 liter
At change : 0.70 liter

Check for oil leaks and then start the engine and let it idle for few minutes.

Recheck the oil level.
