Kymco Agility 50 - Owner's Manual > Advance inspection

 Get into a good habit of inspection before riding. For the sake of safety and to prevent vehicle damage and traffic accidents,  the pre-ride inspection is absolutely required.

CAUTION:

Be sure to perform inspection and maintenance for your new motorcycle after it is ridden for 300km.

Engine oil level inspection/refilling

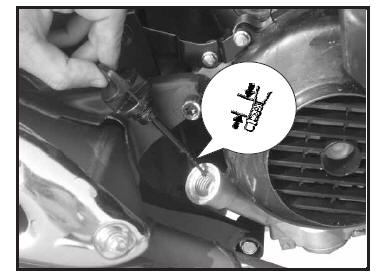

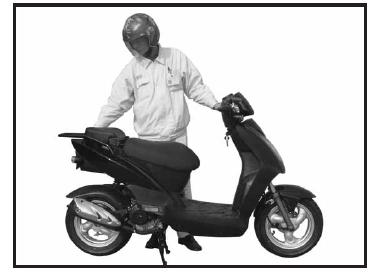

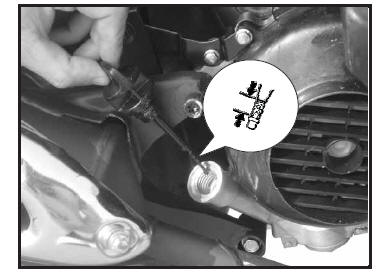

Place the motorcycle on its main stand. Take out the oil dipstick   and wipe it clean.

Directly insert the oil dipstick into the engine oil.

(Don't screw it in.) Take out the oil dipstick and check the oil level. If it is close to the lower limit, add engine oil to the upper limit.

CAUTION:

• Check the oil level at every 1000 km.
• The temperature of engine and exhaust muffler is very high. When checking the oil level, be careful to avoid scalding.
• Riding with insufficient engin oil will cause breakdown easily.

Brake inspection

Ride the motorcycle at low speed on a dry road and respectively apply the front brake lever and rear brake pedal to check the brake performance.

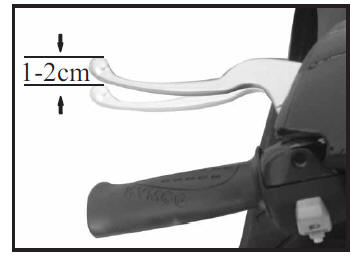

The brake lever should have proper free play.

Free play" means the distance from the position of loose brake to the position of fully applied brake.

Measure the free play at the brake lever end and check if it is within the specified value of (1 cm rear brake).
