Kymco Agility 50 - Owner's Manual > Tire inspection

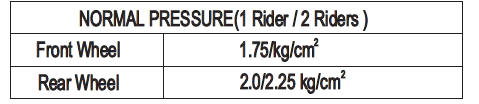

Tire pressure check

Check if the tire pressure is normal when the tire is in contact with level ground.

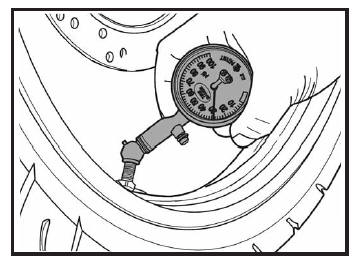

If there is any abnormal condition, check the tire pressure with a tire pressure gauge.

Measure the tire pressure under room temperature.

The tire pressure must not overpass 2.50kg/cm2

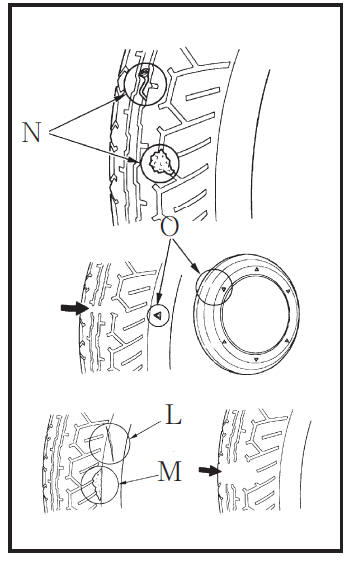

2. Cracks & damage

Check the tire-contact area for crack or damage.

3. Abnormal wear

Check the tire-contact area for abnormal wear.

4. Foreign objects of metal piece & gravel

Check the tires and tire-contact area for imbedded objects of metal piece and gravel

5. Depth of tire groove

If the tire is worn to the wear limit indication mark, replace it with a new one.

CAUTION:

Abnormal tire pressure, crack, damage and abnormal wear will cause unsteady handlebar and result in tire break.

If the tire has cracks or is worn to the wear limit indication mark, replace it with a new one.

Fuel level inspection/refilling

Check if the fuel is sufficient.

If the fuel gauge pointer is at red grid, refill #92 or #95 nonleaded gasoline as soon as possible.

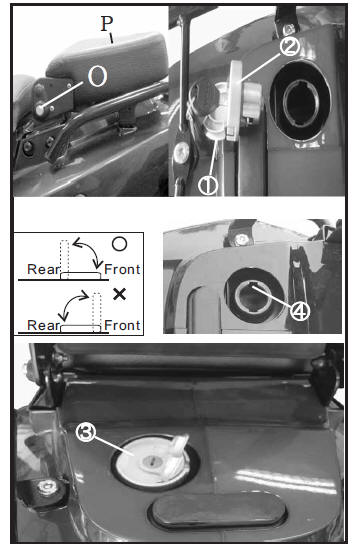

<<Refilling Method>>

1. Press down seat lock button ,open the seat.
2. Open the fuel tank cap protective cover.Insert the ignition switch key into the fuel tank cap lock and turn the key counterclockwise to unlock and open the cap.
3. Use only the nonleaded gasoline to fill the fuel tank.
4. When closing the cap,install the fuel tank cap by aligning the tab on the cap with the groove on the fuel filler.
5. When closing,simply clockwise to close the fuel tank cap.

Fuel tank cap protective cover

Unlock

Lock

Reference plate

Sear seat lock button

Rear seat

CAUTION:

Be sure to stop the engine before refilling.

The gasoline level shall not exceed the reference plate; otherwise the fuel will penetrate out.

When refilling, do not add other additives to avoid engine breakdown.

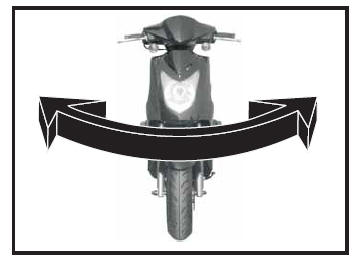

Steering handlebar

Visually inspect the steering handlebar for damage.

Apply the front brake and move the handlebar upward and downward to check for abnormal noise.

Move the steering handlebar upward, downward, rightward and leftward to check for any loose parts.

Check if the handlebar rotates freely.

If any abnormal condition is found, go to your motorcycle dealer or for inspection.

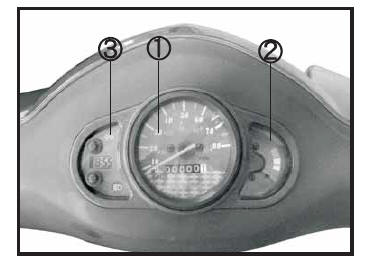

Instrument lights inspection

1. Check the speedometer pointer for proper operation.
2. Check the fuel gauge pointer for proper operation.
3. Check the turn signal indicator and high beam indicator for proper operation.
