Kymco Agility 50 - Owner's Manual > Air cleaner inspection and air cleaner cleaning&replacement

Take out the air cleaner and visually check if it is dirty or clogged.

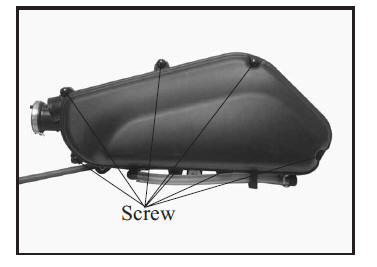

1. Remove the screws attaching the air cleaner cover and remove the air cleaner cover.

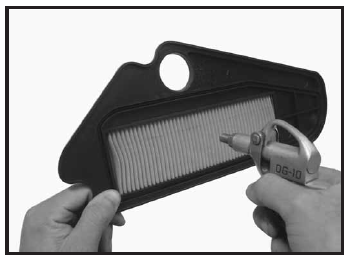

2. Remove the air cleaner element.
3. The installation sequence is the reverse of removal.

Soak the element in clean engine oil and squeeze out the excess oil and then install the element and air cleaner. Replace the air cleaner element at very 2000km. The air cleaner requires more frequent cleaning or replacing when ridden in unusually dusty areas. When replacing, refer to P40 Periodic Inspection & Maintenance Schedule.

CAUTION:

Never use oil or solvent to wash the wet type paper element.

Be careful not to allow water to enter the air cleaner; otherwise it may result in hard starting.

If the air cleaner is not installed properly, dust may be sucked into the cylinder directly to reduce engine horsepower and affect the service life of engine.

Fuel system

Fuel Leakage Inspection

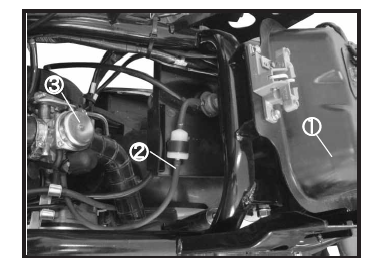

Check the fuel line between the fuel tank and carburetor for fuel leakage.

1. Fuel tank
2. Fuel tube connector
3. Carburetor

CAUTION:

Check and replace any broken or damaged tube connector to avoid breakdown due to running out of gasoline.
