Kymco Agility 50 - Owner's Manual > Appearance cleaning

Often wipe clean the motorcycle appearance to prevent accumulated dust affecting the function of components.

CAUTION:

If a motorcycle is not used for a long time, check the operation of each part and replace lubricants before riding.

Ride the motorcycle only after its performance is confirmed.

When waxing the motorcycle, make sure that the ingredients of the wax will not damage the paint of the motorcycle.

Battery

This model adopts the battery which needs no refilling of

Distilled water.

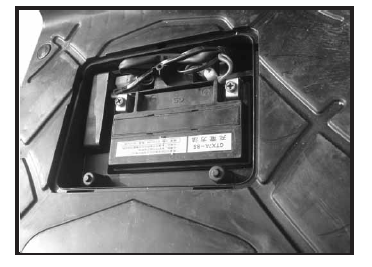

When cleaning the battery terminals, remove the screws Attaching the battery cover on the seat and then open the battery cover.

When battery terminals are corroded, take out the battery for cleaning.

After cleaning, apply a thin coat of grease or Vaseline to Battery terminals and then install the battery.

CAUTION:

Never open the closed-type battery electrolyte cap.

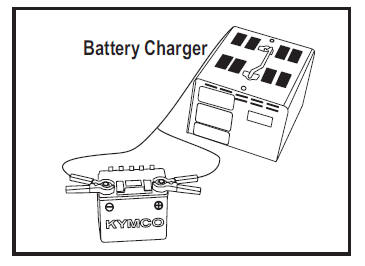

If the motorcycle will not be used for a long time, the Battery will discharge electricity by itself. Remove the Battery and put it in a cool place after it is fully charged to Prevent electricity leakage.

If the motorcycle will not be used for a long time,remove the negative(-)ter minal.

Do not smoke or allow flames or sparks near the battery

While removing and installing it.

Turn off the ignition switch before removal or installation.

The negative (-) terminal shall be removed first and the Positive (+) terminal shall be installed first.

Tighten the loose terminal nuts securely.

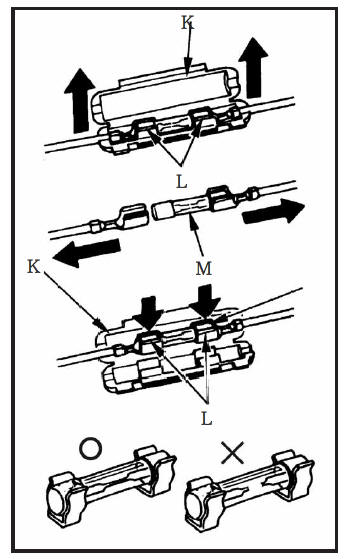

Fuse change

Turn off the main switch and check if the fuse is burned out.

When the fuse is burned out,replace with a specifisd fuse.

Check for the cause of breakdown before replacing.

Ignition switch fuse specification:7A

CAUTION:

 Be careful not to excessively expand the fuse clip during removal.

After a new fuse is installed,check the fuse clip for looseness which is the main cause of trouble.

Never use fuse of unspecified capacity,it may cause wire overheating and burning out.

When replacing electric appliances(lights,instruments), be sure to use the recommended genuine parts.

When washing the motorcycle,avoid flushing it.

If the cause can not be found,contact our distributor or service station for inspection
