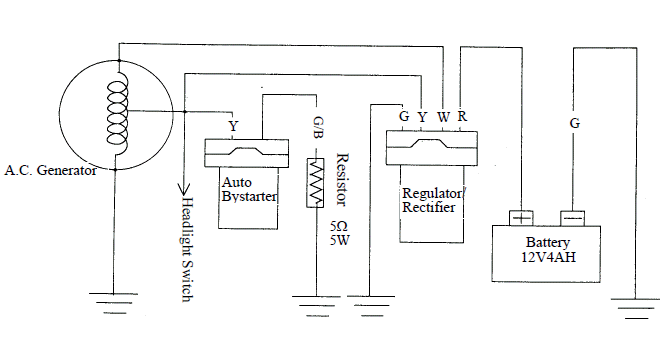

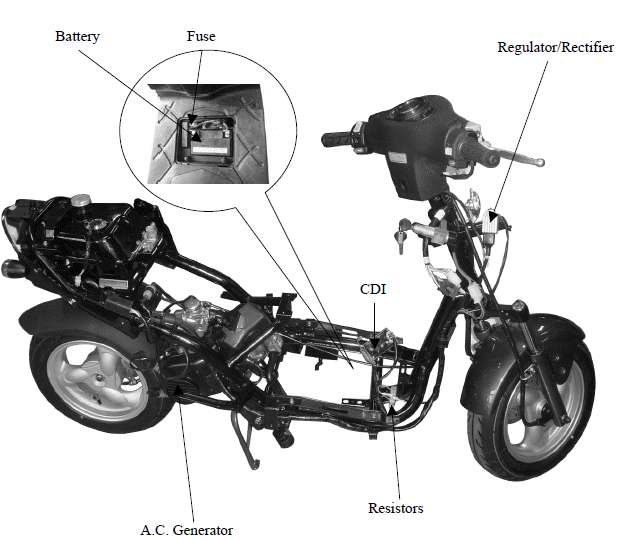

SERVICE INFORMATION

GENERAL INSTRUCTIONS

The battery electrolyte (sulfuric acid) is poisonous and may seriously damage the skin and eyes. Avoid contact with skin, eyes, or clothing. In case of contact, flush with water and get prompt medical attention.

• The battery can be charged and discharged repeatedly. If a discharged battery is not used for a long time, its service life will be shortened. Generally, the capacity of a battery will decrease after it is used for 2-3 years. A capacity-decreased battery will resume its voltage after it is recharged but its voltage decreases suddenly and then increases when a load is added.
• When a battery is overcharged, some symptoms can be found. If there is a short circuit inside the battery, no voltage is produced on the battery terminals. If the rectifier won't operate, the voltage will become too high and shorten the battery service life.
• If a battery is not used for a long time, it will discharge by itself and should be recharged every 3 months.
• A new battery filled with electrolyte will generate voltage within a certain time and it should be recharged when the capacity is insufficient. Recharging a new battery will prolong its service life.
• Inspect the charging system according to the sequence specified in the Troubleshooting.
• Do not disconnect and soon reconnect the power of any electrical equipment because the electronic parts in the regulator/rectifier will be damaged. Turn off the ignition switch before operation.
• It is not necessary to check the MF battery electrolyte or fill with distilled water.
• Check the load of the whole charging system.
• Do not quick charge the battery. Quick charging should only be done in an emergency.
• Remove the battery from the motorcycle for charging.
• When replacing the battery, do not use a traditional battery.
• When charging, check the voltage with an voltmeter.

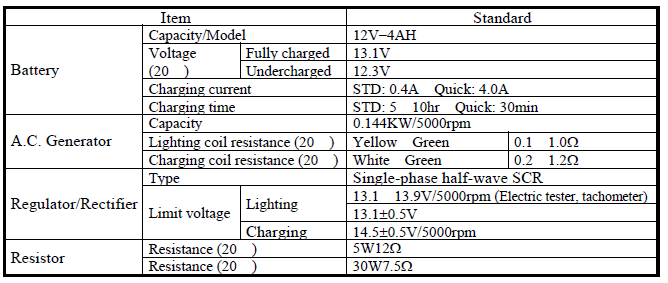

SPECIFICATIONS

TORQUE VALUES

Pulser coil bolt 0.45~0.6kgf-m
Stator bolt 0.8~1.2kgf-m
Flywheel nut 3.5~4.5kgf-m
Cooling fan bolt 0.8~1.2kgf-m

SPECIAL TOOLS

Universal holder
Flywheel puller

TESTING INSTRUMENTS

Kowa electric tester
Sanwa electric tester

TROUBLESHOOTING

No power

• Dead battery
• Disconnected battery cable
• Fuse burned out
• Faulty ignition switch

Low power

• Weak battery
• Loose battery connection
• Charging system failure
• Faulty regulator/rectifier

Intermittent power

• Loose battery cable connection
• Loose charging system connection
• Loose connection or short circuit in lighting system

Charging system failure

• Loose, broken or shorted wire or connector
• Faulty regulator/rectifier
• Faulty A.C. generator

• Battery
• Charging system
