Kymco Agility 50 - Owner's Manual > Brake fluid level inspection /refilling

Remove the two screws from the brake fluid tank and take off the cover.

Add recommended brake fluid DOT-4 into the tank until the fluid level reaches the upper limit and then put on the cover and tighten the screws.

Recommended Brake Fluid: DOT-4

CAUTION:

Do not mix brake fluid of different brands. It may cause brake failure and is very dangerous. When refilling brake fluid, use towels to cover and protect the painted and coated surfaces. (Replace at 10000km or every year.)

ＫUpper Lime ＬLower Lime

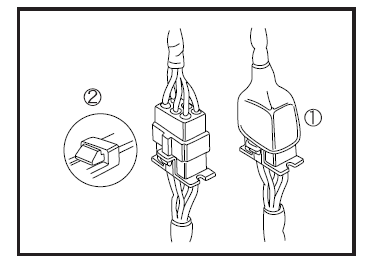

Rubber cover inspection for wire and cable

The cable cores are protected by the rubber cover outside the connector. Check the rubber cover frequently for proper installation.

When washing the motorcycle, do not flush the rubber cover directly or brush it. Use a wet rag to wipe off dirt and dust.

1. Rubber Cover
2. Check Points

Important  notices

When the engine fails to start or stops during riding

Is the gasoline enough? If the fuel gauge pointer is at the red line, refill #92 or #95 nonleaded gasoline.

Is the way to start the engine correct? Is there any other faulty parts?

In case of breakdown

For any trouble occurred during riding, go to a KYMCO distributor or service station for inspection.

CAUTION:

For the sake of safety and to prevent vehicle damage and save your precious time, the pre-ride inspection is absolutely required. Please read this User's Manual carefully and get into a good habit of inspection before riding.

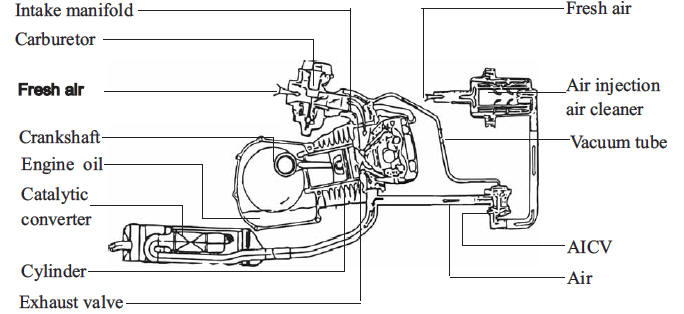

Exexhaust emission control system

The exhaust emission control system adopted in this model utilizes the reed valve to draw secondary air into the exhaust system for combustion by means of exhaust pulsation in order to minimize the exhaust emission

EXHAUST EMISSION CONTROL SYSTEM MAINTENANCE: OPERATION METHOD:

1. Refer for air cleaner cleaning.
2. Engine Oil In order to have hight combustion efficiency and reduce pollutants,make sure to change the engine oil at every 1000Km.
3. Gasoline:In order to prevent combustion efficiency being affected by the ignition system performance,make sure to us92# or95# nonleaded gasoline.Leaded gasoline is strictly prohibited for use.(Leaded gasoline will cause the failure of catalytic converter due to aging).
4. Emission concentration Test At Idle Speed:Go to a service station with emission analyzer for analyzer for emission concentration test and carburetor adjustment.

WARNING:

The exhaust muffler is very hot. The motorcycle must be parked in a place where Pedestrians and children are unable to touch it.

CAUTION:

1.In order to ensure the proper operation of the exhaust emission control system,be sure to perform the periodic inspection and maintenance.

2.In order to ensure the function of the exhaust emission control system,never modify the motoycycle at will to avoid penalty due to high emission concentration.

3.If any problem is found,go to KYMCO designated service stations fo inspection

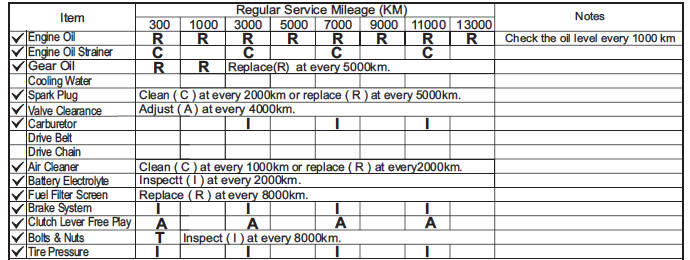

Periodic inspection & maintenance schedule

 In order to have a safe riding, maintain good performance, prolong the motorcycle service life and reduce pollution, make sure to perform the periodic inspection and maintenance.

I: Inspect and clean, lubricate, refill, repair or replace if necessary.

A: Adjust C: Clean R: Replace T: Tighten

The above items are applicable to different models. Perform suitable items for each model.

When exceeding the listed mileages, perform maintenance according to the listed intervals.

The air cleaner requires more frequent cleaning or replacing when ridden in unusually dusty areas.

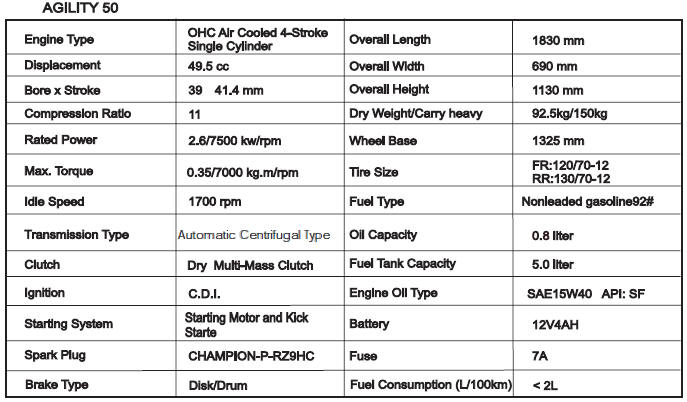

Specifications
