Kymco Agility 50 - Owner's Manual > Engine oil change

1. Place the motorcycle on its main stand on level ground.

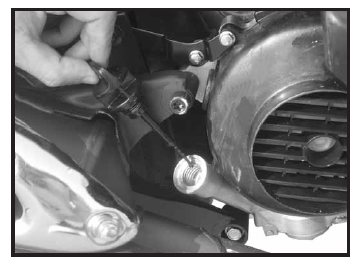

2. Remove the oil dipstick.

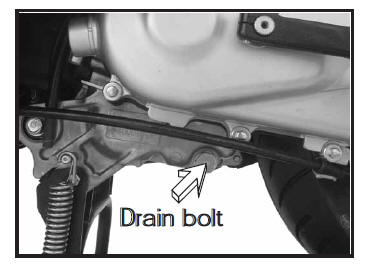

3. Remove the drain bolt to drain the oil.
4. Refill fresh engine oil for liter. Firmly tighten the oil dipstick.
5. Warm up the engine and check the oil level again after the engine is stopped for 20 30 seconds.

Specified Oil: SAE 15W-40

API service classifcation: SG

Capacity/Exchanging Capacity:  0.8 L /0.7 L

CAUTION:

When changing the engine oil, also clean the oil strainer and reinstall it.

Use the specified engine oil.

Change engine oil at first 300km and then change it at every 2000 km .

Engine oil will deteriorate easily and require more frequent change if the motorcycle is often ridden in dusty and cold areas or ridden for short distance.

Do not mix engine oil of different classes or viscosities. It may cause damage for engine.

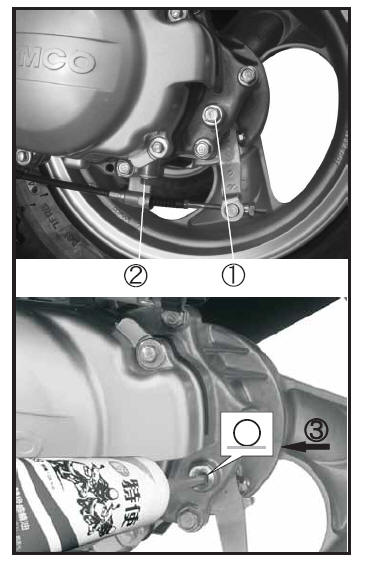

Transmission gear oil

Check the transmission gear oil tank for leakage.

1. Place the motorcycle on its main stand on level ground.

   After the engine stops for 2-3 minutes, remove the gear oil check bolt to check the oil level.

2. If the oil level is lower than the check bolt hole lower edge, add gear oil to the lower edge.
3. After refilling, securely tighten the check bolt.

   Recommended Gear Oil: SAE90

Capacity / Exchanging Capacity: 0.11L / 0.10 L Gear Oil Filler Oil (Check Bolt Hole)

Drain Bolt

Oil Level

CAUTION:

Add gear oil through the oil check bolt hole.

After refilling, use a rag to wipe clean.

Excess or insufficient gear oil will affect the engine performance.

Never use gear oil of different brand or inferior quality which may result in engine breakdown.

Change gear oil at first 300km and then change at every 5000km. Add specified gear oil whenever it is necessary.

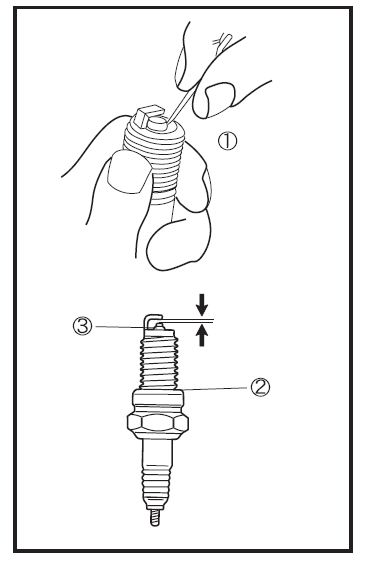

Spark plug inspection

Check the spark plug side electrodes for wear.

Fouling deposits on spark plug electrodes and big gap may result in weak spark.

Spark Plug Removal:

1. Remove the spark plug with a spark plug remover.
2. The installation sequence is the reverse of removal.

Spark Plug Cleaning:

1. It is better to remove spark plug deposits with a spark plug cleaner.
2. If a spark plug cleaner is not available, clean with a wire brush.

The side electrode gap is 0.6 0.7mm.

Specified Spark Plug: CHAMPION-P-RZ9HC

Decarbonizing

Cracks, Damage

Gap, Wear,Fouling Deposits

CAUTION:

Clean the spark plug at every 2000km and replace it with a new one at every 5000km or when the center electrode is burned out.

First screw in the spark plug with fingers and then tighten with a spark plug wrench.

Use unspecified spark plug may damage the engine.
