Piaggio Liberty 50 - Owner's Manual > Dashboard

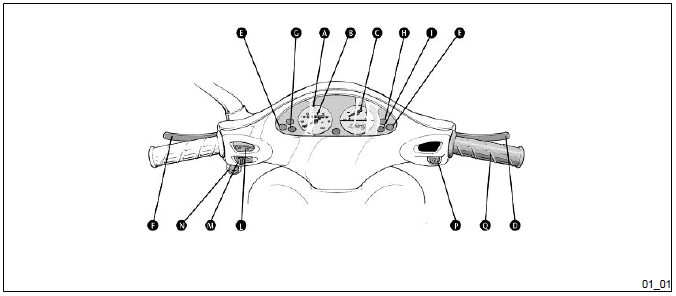

A = Speedometer
B = Odometer
C = Fuel gauge
D = Front brake lever
E = Turn signal indicator light
F = Rear brake lever
G = Full beam indicator
H = Fuel warning light
I = Side lights/dipped beam warning light
L = Headlight full beam/dipped beam selector
M = Turn signal selector
N = Horn
P = Start button
Q = Throttle

Key switch

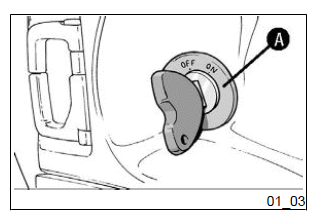

LOCK = Ignition OFF, key can be removed, steering locked, front glove box locked.

OFF = Ignition OFF, key can be removed, steering unlocked, front glove box unlocked.

ON = Ready to start engine, immobilizer disarmed, key cannot be extracted, glove box unlocked.

Locking the steering wheel

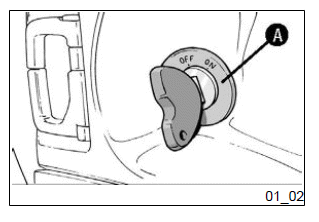

Turn the handlebar to the left (as far as it will go), turn the key to "LOCK" and remove the key.

CAUTION

DO NOT TURN THE KEY TO "LOCK" OR "KEY OFF" WHILE RIDING.

Switch direction indicators

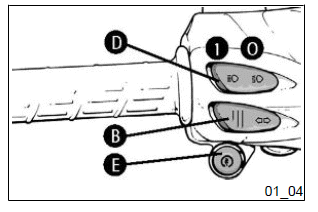

To set the left turn indicators flashing, move lever "B" to the left; to set the right turn indicators flashing, move it to the right. The lever automatically returns to the central position and the indicators remain on. To turn the indicators off, press the lever towards the switch.

Horn button

Horn button "E"
