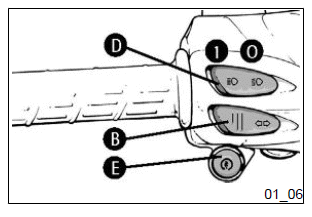

Piaggio Liberty 50 - Owner's Manual > Light switch

0 = Low-beam and tail light
1 = High-beam and tail light

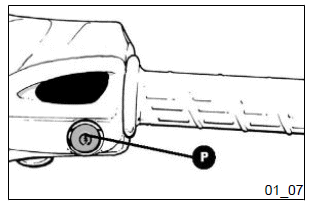

Start-up button

To start the engine, press the starter button, "P", after pulling either one of the two brake levers.

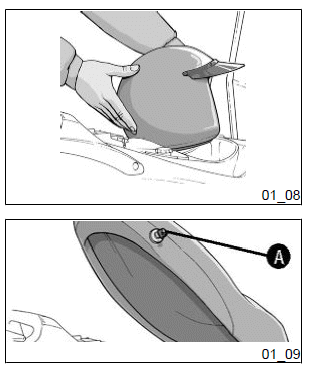

Opening the saddle

Insert the key in lock "A" and turn it anti-clockwise. Tip the saddleforwards.

Open the saddle and insert the helmet in the compartment as shown in figure. The compartment is designed to accommodate only "Demijet" type helmets.

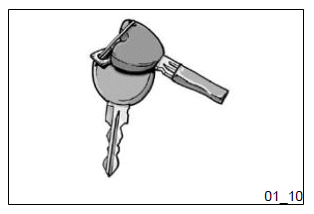

Keys

The vehicle is supplied with two keys (one spare) which serve to start the engine and unlock the saddle compartment. The keys are accompanied by a tag marked with the identification code to be quoted when ordering duplicates.

WARNING

WE RECOMMEND KEEPING THE DUPLICATE KEY TOGETHER WITH ITS CODE IN A SAFE PLACE AND NOT ON THE VEHICLE

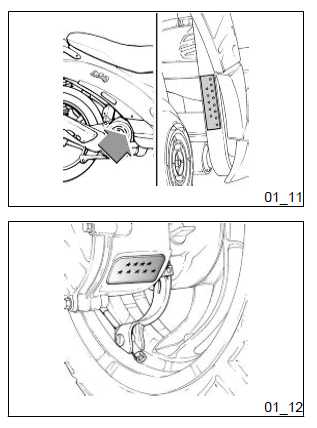

Identification

The identification numbers consist of a prefix stamped on the chassis and on the engine, followed by a number. They must be quoted when ordering spare parts. We recommend that you check that the prefix and chassis number stamped on the vehicle correspond with those in the vehicle documents.

CAUTION

PLEASE REMIND THAT ALTERING IDENTIFICATION REGISTRATION NUMBERS CAN LEAD TO SERIOUS PENAL SANCTIONS (IMPOUNDING OF THE VEHICLE, ETC.).

Rear top box opening

Press the key when it is in "OFF" or "ON" to open the glove-box. With the key is in "LOCK" the glove-box is locked.
