Yamaha aerox NS50 - Owner's Manual > Description

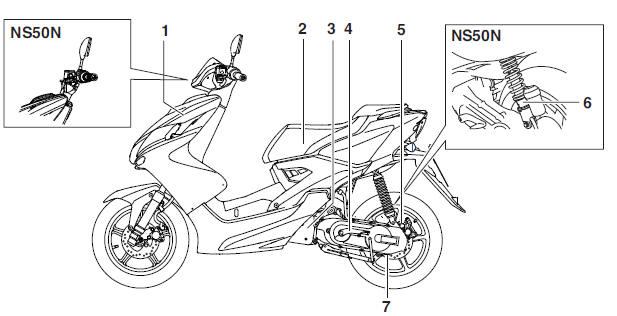

Left view
- Coolant reservoir cap
- Storage compartment
- Air filter element
- Kickstarter
- Final transmission oil filler cap
- Shock absorber assembly spring preload adjusting ring
- Final transmission oil drain bolt

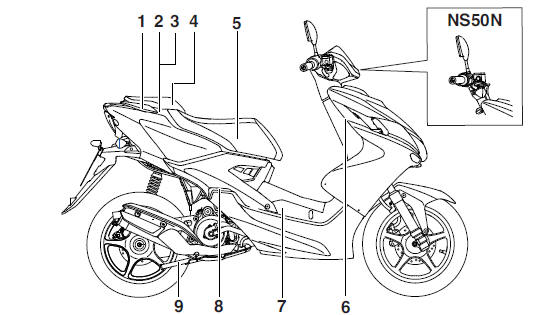

Right view
- Grab bar
- Fuel tank cap
- 2-stroke engine oil tank cap
- Passenger seat
- Rider seat
- Main switch/steering lock
- Battery/fuse
- Passenger footrest
- Centerstand

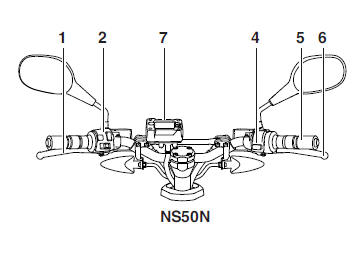

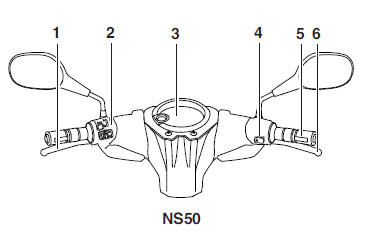

Controls and instruments
- Rear brake lever
- Left handlebar switches
- Multi-function display
- Right handlebar switch
- Throttle grip
- Front brake lever
- Speedometer
