Kymco Agility 50 - Service manual > Drive and Driven Pulleys/Kick Starter

SERVICE INFORMATION

GENERAL INSTRUCTIONS

• The drive pulley, clutch and driven pulley can be serviced with the engine installed.
• Avoid getting grease and oil on the drive belt and pulley faces. Remove any oil or grease from them to minimize the slipping of drive belt and drive pulley.

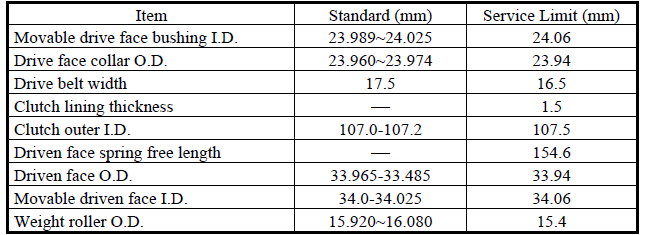

SPECIFICATIONS

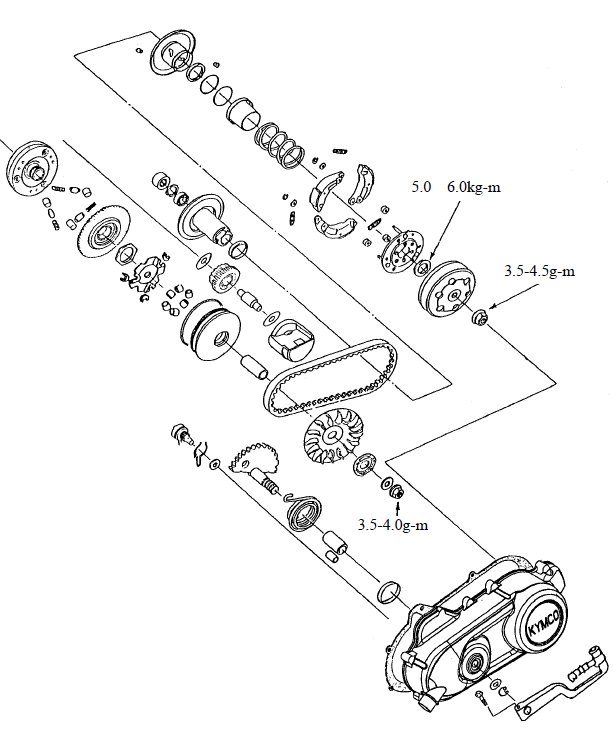

TORQUE VALUES

Drive face nut 5.5~6.5kgf-m
Clutch outer nut 3.5~4.5kgf-m
Clutch drive plate nut 5.0-6.0kg-m

SPECIAL TOOLS

Universal holder   Clutch spring compressor

TROUBLESHOOTING

Engine starts but motorcycle won't move

• Worn drive belt
• Broken ramp plate
• Worn or damaged clutch lining
• Broken driven face spring

Engine stalls or motorcycle creeps

• Broken clutch weight spring

Lack of power

• Worn drive belt
• Weak driven face spring
• Worn weight roller
• Fouled drive face

• Left crankcase cover
• Drive belt
• Starter pinion
