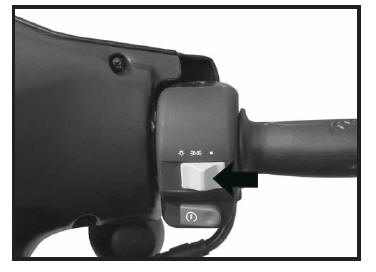

Kymco Agility 50 - Owner's Manual > Headlight switch

At this position, the position light, headlight, instrument lights and taillight turn off together.

At this position, the position light, instrument lights and taillight light turn on.

At this position, the position light, headlight, instrument lights and taillight light all turn on.

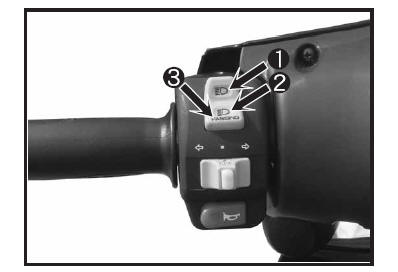

Headlight dimmer switch

1. Switch to this position for using high beam.
2. When riding in downtown area or there is a car coming from the opposite direction, use low beam to avoid affecting the visibility of coming cars.
3. When passing,if there are cars coming from the opposite direction,press and release the PASSING switch and the headlight will wink to warn the coming cars.

CAUTION:

This indicator comes on when the long distance light is turned on.

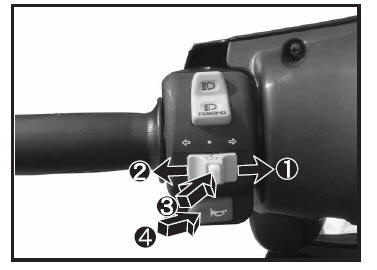

Horn button/turn signal switch

When the ignition switch key is turned the"ON"position, push the horn button and it will sound. For turning to the right. For turning to the left. Push the turn signal switch button to release it. Horn Button.

The horn and turn signal switch do not work when the ignition switch is the"OFF".

CAUTION:

The turn signal light will not release automatically. Be sure to reset it after use; otherwise it may affect the traffic safety.

Seat lock/met-in box.Helmet buckle

Unlock the seat and put the helmet in the MET-IN box.

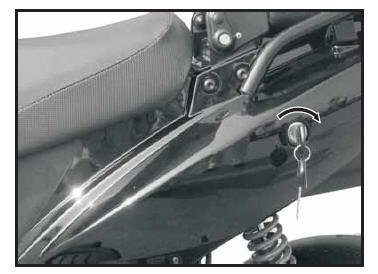

<< Unlocking Method>>

Stop the engine and turn the ignition switch to the "OFF" position. Insert the ignition switch key into the seat lock and turn it right.

To lock the seat, push on it until it lock automatically.

Make sure the seat is secure before riding.

CAUTION:

Never put the key inside the seat cushion to lock the seat.

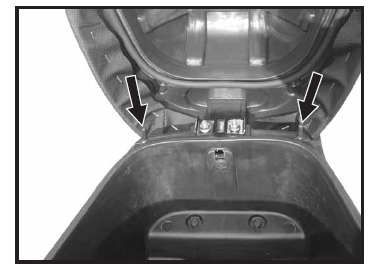

Helmet buckle

1. Open the seat with the ignition switch key and lift up the seat.
2. Put the helmet retaining ring into the helmet buckle.
3. Put down the seat and it will lock automatically.

Take out the helmet in the reserve order of the above steps.

CAUTION:

When riding, wear the helmet and do not retain it on the motorcycle to avoid damage of coated parts.

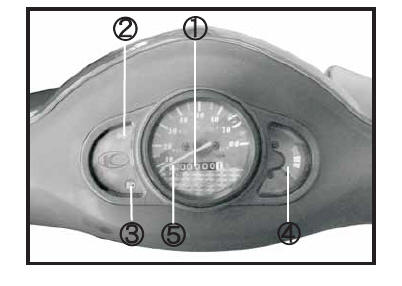

Instruments

1. MILEAGE COUNTER: The total riding mileage is indicated by kilometer. The figure in black and white is an unit of 100m.
2. TURN SIGNAL INDICATOR LIGHT: When the turn signal switch is operated,this indicator will wink.
3. HIGH BEAM INDICATOR LIGHT: This indicator comes on when the long distance light is turned on.
4. FUEL GAUGE: The fuel gauge is to show the volume of gasoline in the fuel tank. If the fuel gauge pointer is at the red area, the fuel is insufficient. Refill nonleaded gasoline as soon as possible.
5. SPEEDOMETER: The riding speed is indicated by km/hour or mph.
