Kymco Agility 50 - Owner's Manual > Ignition switch/steering&handlebar lock

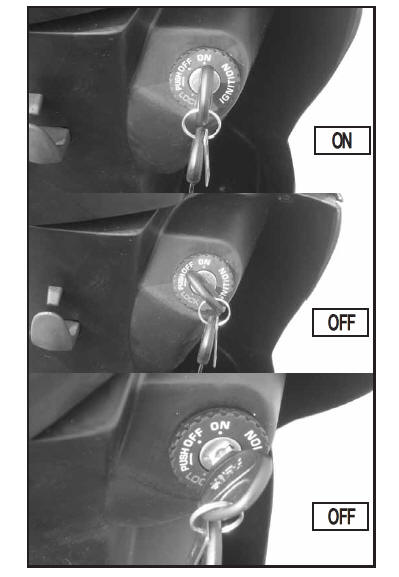

1. ON : At this position, power is connected to start the engine. The key cannot be taken out.
2. OFF : At this position, power is cut off and the engine stops. The key can be taken out.
3. LOCK : At this position, the steering handlebar is locked.

The key can be taken out

Locking Method

Turn the steering handlebar left to the full and then push and turn the ignition switch key left to the "LOCK" position ,the handlebar can be locked.

Unlocking Method

Turn the ignition switch key right to the"OFF" and the "LOCK" is released automatically.

CAUTION:

After locking, turn the handlebar gently to make sure that it is locked.

Do not turn the ignition switch to the"LOCK" Position during riding, otherwise the handlebar will be out of control and cause accidents.

Don't park your motorcycle at a place to hinder the traffic.

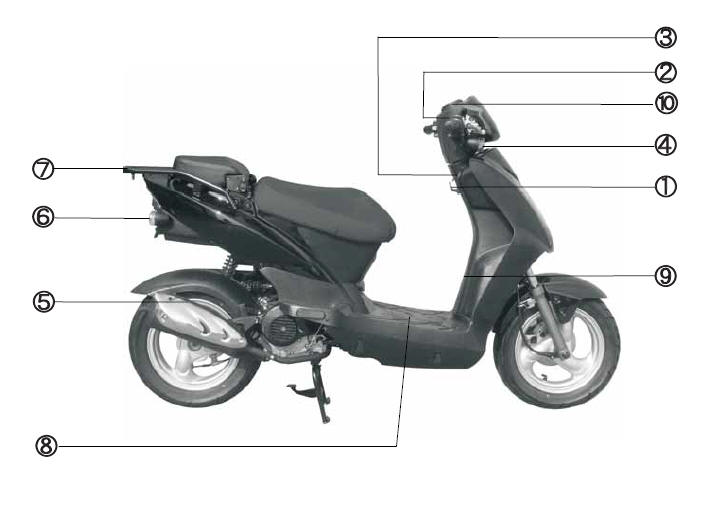

1. Center Clip
2. Headlight Switch Electric Starter Button
3. Ignition Switch
4. R. Front Turn.

   Signal Light. Rear Brake Lever

5. Exhaust Muffler
6. R.Rear Turn.

   Signal Light

7. Rear Carrier
8. Battery
9. Frame Serial Number
10. Instruments

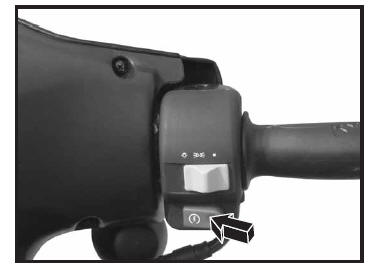

Electric starter button

To start the engine, first turn on the ignition switch and then push the electric starter button. At this time, be sure to fully apply the front or rear brake lever (pedal) in order to connect the power.

CAUTION:

During engine running, do not push the electric starter button to avoid engine damage.

Release the electric starter button immediately after the engine is started.
