BMW R 1250 RT - Owner's Manual > Indicator and warning lights, Meaning of symbols

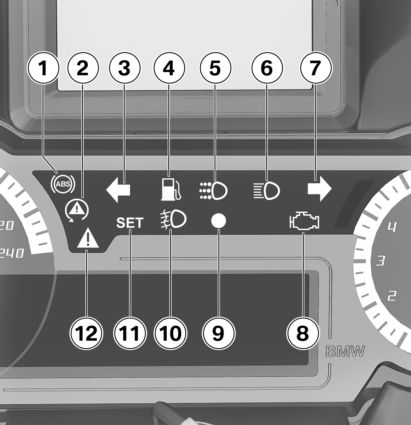

Indicator and warning lights
- ABS
- ASC/DTC
- Turn indicators, left
- Fuel reserve
- Day run lights
- High-beam
- Turn indicators, right
- with export to EU marketsOE
Malfunction indicator lamp
Emissions warning - DWA
Indicator light for the radio-operated key - Additional headlight
- Cruise control
- General warning light, in connection with warning symbols in the display
Meaning of symbols
Meaning of the symbols at position 1:
Average consumption
since the last reset
Current consumption
Range with the
available fuel quantity
Average speed since
the last reset
Ambient temperature
with tyre pressure
control (RDC) OE
Tyre inflation
pressures
Stopwatch
Travelling times
Date (display
depends on the configured time format)
Oil level
On-board voltage
-
Heated grips switched on
- with seat heating OE
- Rider's seat heating switched on
- Passenger seat heating switched on
- with Dynamic ESA OE
- Damping mode
- Load setting
See also:
BMW R 1250 RT - Owner's Manual > Multifunction display, Warnings
Multifunction display Riding mode Clock Warning symbols Menu section Audio system - with intelligent emergency call OE Emergency call display On-board computer - with tyre pressure control (RDC) OE Tyre pressure Load setting Damping mode Rider's seat heating Passenger seat heating Heated handlebar grips Automatic daytime riding light Odometer Trip recorder Hill Start Control Gear indicator; "N" indicates neutral. Coolant temperature Fuel level
