BMW R 1250 RT - Owner's Manual > Multifunction display, Warnings

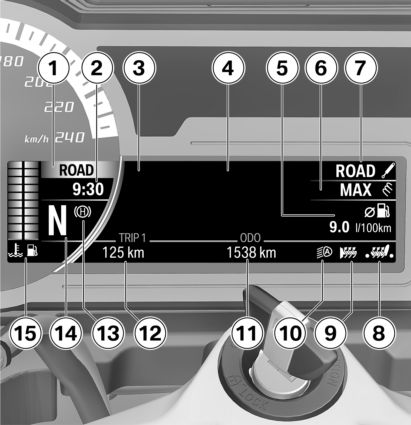

Multifunction display
- Riding mode
- Clock
- Warning symbols
- Menu section
Audio system
- with intelligent emergency call OE
Emergency call display - On-board computer
- with tyre pressure control (RDC) OE
Tyre pressure - Load setting
- Damping mode
- Rider's seat heating
Passenger seat heating - Heated handlebar grips
- Automatic daytime riding light
- Odometer
- Trip recorder
- Hill Start Control
- Gear indicator; "N" indicates neutral.
- Coolant temperature
Fuel level
Warnings
Mode of presentation
Warnings are indicated by the corresponding warning lights.
Warnings for which there are no separate warning lights are shown using the general warning light 1 in combination with a warning symbol such as 2 on the multifunction display. The 'general' warning light is yellow or red, depending on the urgency of the warning.
Up to four warning symbols can be displayed at the same time.
The general warning light is displayed according to the most urgent warning .
The possible warnings are listed on the following pages.

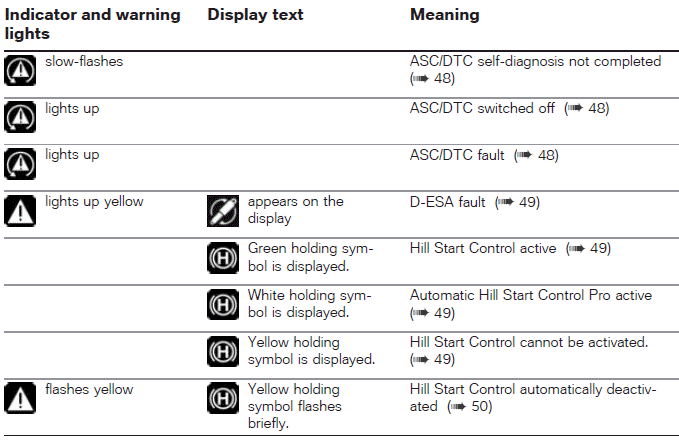

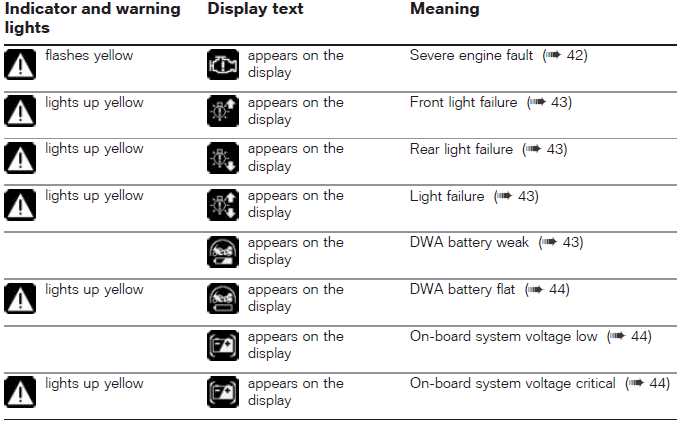

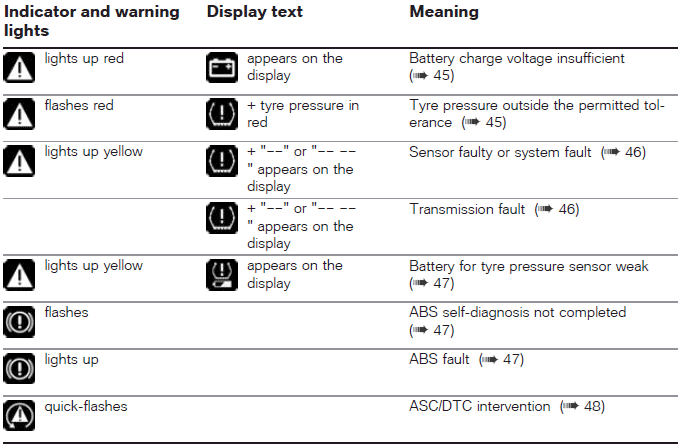

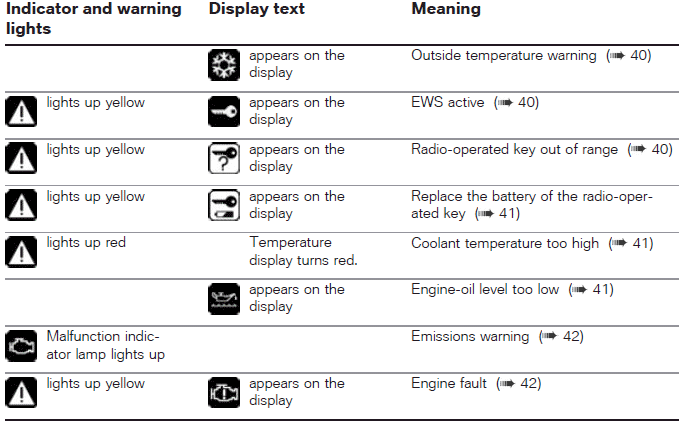

Warnings, overview
- Outside temperature warning
- Engine fault
- Tyre pressure outside the permitted tolerance
- Hill Start Control active
See also:
BMW R 1250 RT - Owner's Manual > Indicator and warning lights, Meaning of symbols
Indicator and warning lights ABS ASC/DTC Turn indicators, left Fuel reserve Day run lights High-beam Turn indicators, right with export to EU marketsOE Malfunction indicator lamp Emissions warning DWA Indicator light for the radio-operated key Additional headlight Cruise control General warning light, in connection with warning symbols in the display
BMW R 1250 RT - Owner's Manual > Outside temperature warning
appears on the display. Possible cause:
