Peugeot Speedfight - Workshop Manual > Location of body components

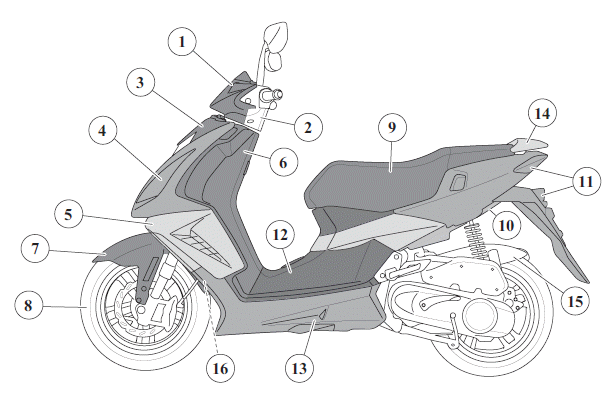

Description

1. Handlebar front fairing
2. Handlebar rear fairing
3. Front top cover panel
4. Legshield top panel
5. Front lower legshields
6. Rear shield
7. Front mudguard
8. Front wheel
9. Saddle and storage compartment
10. Lower fairing
11. Rear panels
12. Footboard
13. Bottom panel
14. Grab handle
15. Rear mudguard
16. Mudguard

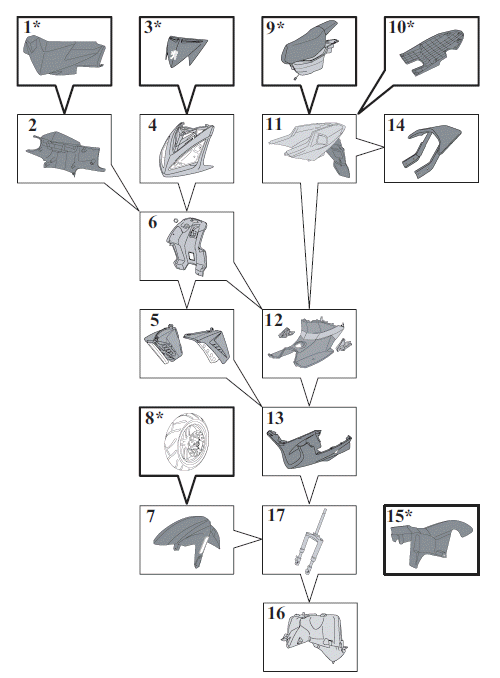

Body component sequence of disassembly

1. Handlebar front fairing
2. Handlebar rear fairing
3. Front top cover panel
4. Legshield top panel
5. Front lower legshields
6. Rear shield
7. Front mudguard
8. Front wheel
9. Saddle and storage compartment
10. Lower fairing
11. Rear panels
12. Footboard
13. Bottom panel
14. Grab handle
15. Rear mudguard
16. Mudguard
17. Fork

*This item may be removed on its own.

Removal of the storage compartment

Procedure 1.

• Lift the saddle.

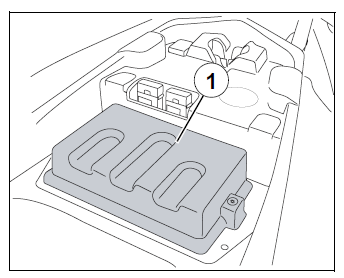

• Remove the battery cover (1).
  • 2 plastic screws.
• Disconnect and remove the battery.

• Remove the storage compartment.

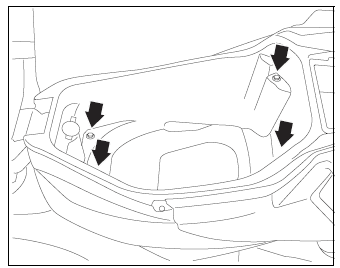

  • 4 washer head screws Ø6 mm.

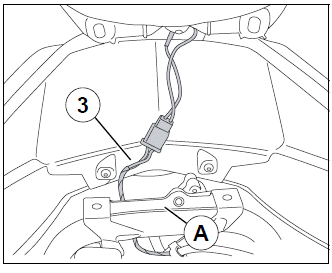

• Disconnect the accessory plug (3).

  When reassembling, ensure that the accessory plug supply harness runs IN FRONT of the storage compartment bracket (A).
