Peugeot Speedfight - Workshop Manual > Removal of the rear cover assembly and mudflap

Procedure 2.

• Remove the storage compartment. See: Procedure 1.

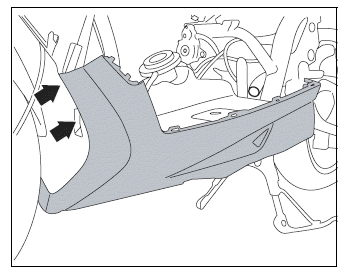

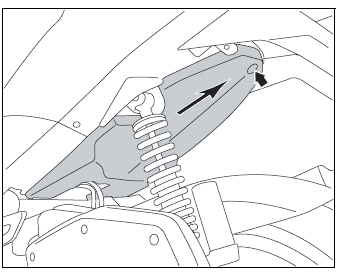

• Remove the lower fairing by sliding it towards the rear of the vehicle.
  • 1 screw Ø6 mm.

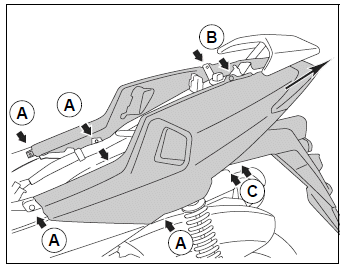

• Remove the rear cover assembly (10 screw).
  • 6 plastic screws (A).
  • 2 screw Ø5 mm (B).
  • 2 screw Ø6 mm (C).
• Disconnect the taillight.

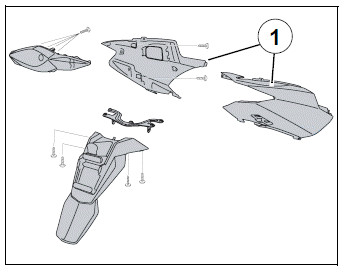

• Remove the splash guard.
  • 4 plastic screws.
• Remove the taillight.
  • 4 plastic screws.
• Separate the 2 fairings (1).
  • 2 plastic screws.

Removal of handlebar fairing

Procedure 3.

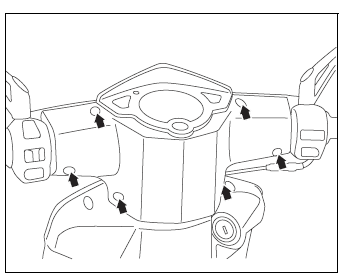

• Remove the handlebar front cover.
  • 6 plastic screws.

• Disconnect the instrument cluster.

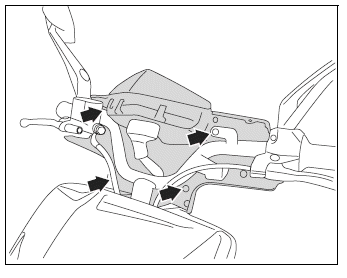

• Remove the handlebar rear cover and instrument cluster assembly.
  • 4 plastic screws.

Removal of the front top shield panel

Procedure 4.

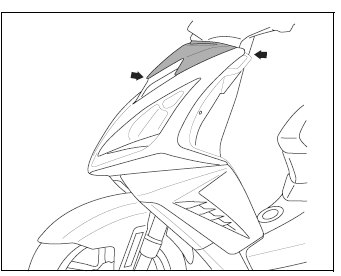

• Remove the front top cover panel.
  • 3 plastic screws.

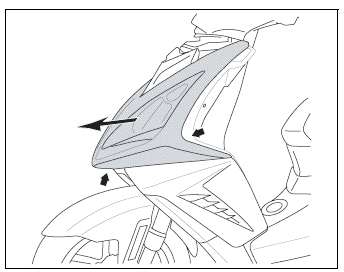

• Remove the front upper shield panel.
  • 4 plastic screws.
• Disconnect the lighting.

Removal of the rear shield panel

Procedure 5.

• Remove the handlebar fairings. See: Procedure 3.
• Remove the front upper shield panel. See: Procedure 4.

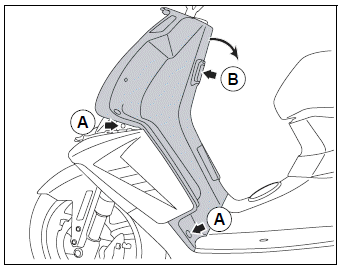

• Remove the rear shield panel.
  • 4 washer head screws Ø6 mm (A).
  • 1 screw Ø6 mm (B).

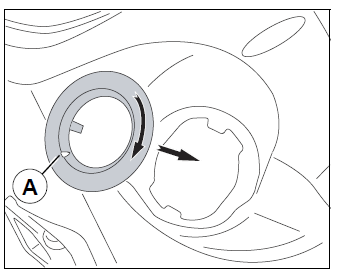

  When reinstalling the shield panel, fit the ignition key switch trim with the mark at the bottom (A).

Removal of front lower shield panels

Procedure 6.

• Remove the rear shield panel. See: Procedure 5.

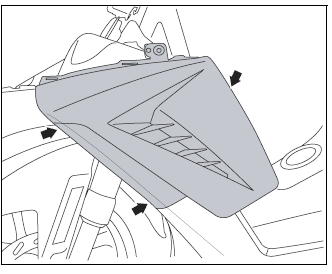

• Remove the front lower shield panels.
  • 3 plastic screws.
• Disconnect the direction indicators.

If a direction indicator bulb is changed, the indicator's other bulbs must also be systematically replaced..

Removal of the footboard

Procedure 7.

• Remove the rear cover assembly. See: Procedure 2.
• Remove the front lower shield panels. See: Procedure 6.

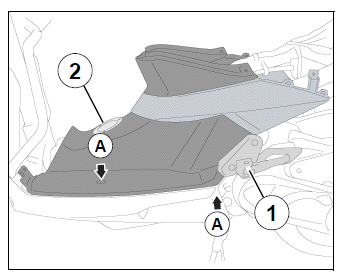

• Remove the RH and LH footrest (1) (2 screws each).
• Remove the tank filler cap trim (2) (3 screw).
• Remove the footboard.
  • 4 washer head screws Ø6 mm (A).

Removal of the under body panel

• Remove the footboard. See: Procedure 7.
• Remove the bottom panel.
  • 4 plastic screws
