Peugeot Speedfight - Workshop Manual > Service Schedule and Commissioning

Heavy duty servicing applies to vehicles used under rugged operating conditions: door-to-door deliveries, intensive urban use (courier), short journeys with engine cold, dusty areas, ambient temperature over 30ºC.

To be checked at each service.

V: Check, clean, adjust.
N: Clean.
R: Change.
C: Inspect and change if necessary.
G: Check, clean, lubricate.

* Depending on equipment.

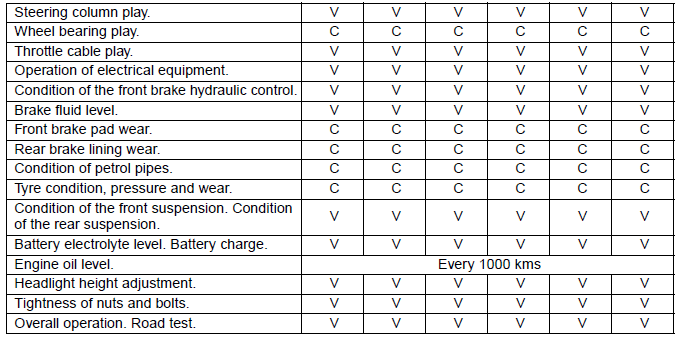

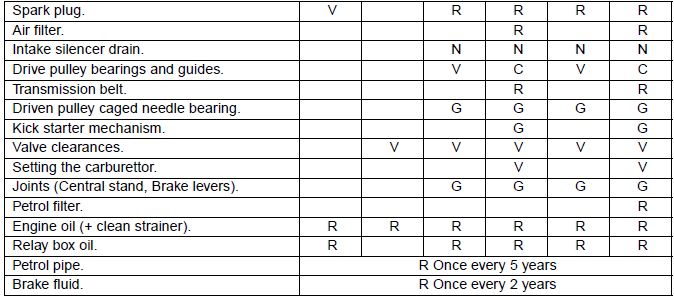

Service operations.

Time required for maintenance

V: Check, clean, adjust.
N: Clean.
R: Change.
C: Inspect and change if necessary.
G: Check, clean, lubricate.

* Depending on equipment.

Battery preparation (Except battery without maintenance)*

Remove the battery.

Remove the 6 filler caps and the vent plug.

Fill all the battery cells with electrolyte to the upper level shown on the battery " UPPER LEVEL ".

Electrolyte: (35% sulfuric acid = 1.28g/cm3). 0.5 litre can P/N 739733.

Leave the battery to stand for around half an hour.

Top up if necessary.

Charge the battery for at least 2 hours with a current of 0.4 A.

Refit the battery and connect the vapour vent pipe.

Connect the red wire lug to the battery's + terminal, and the green wire lug to the battery's - terminal.

Then, the battery level should be topped up if necessary, after fully charging, using distilled water only.

* Depending on equipment.

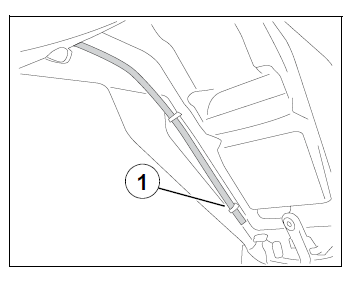

Installing the battery vapour vent hose.

• After being connected to the battery, the vapour vent hose must be routed through the 2 holders located in the rear splash guard.
• Cut the vent hose 1 cm after the second holder (1).

New machine preparation

Check the tightness of the carburettor float chamber drain screw.

Check the wheel nuts are tight.

Check nuts and bolts are tight.

Check brake adjustment and efficiency.

Check the tyre pressures cold.

Check operation of the lights, flashers, horn, and brake light.

Check the different warning lights work.

Carry out a road test.

Special Important Points

Oil and fuel

This engine is designed to run on 95 or 98 unleaded fuel only.

 Fuel pipes must absolutely be changed if there are any signs of wear, cracks, etc.

The air pipe between the air pump and the exhaust is specific owing to its heat resistance properties.

Should it be changed, replace it with a genuine pipe.

The clips are specific, they must always be changed each time they are removed and replaced with new genuine parts clips.

  Petrol is highly inflammable, do not smoke in the working area and avoid proximity to flames or sparks.

Before carrying out any work, leave the engine to cool for at least 2 hours.
