Peugeot Speedfight - Workshop Manual > Tightening Torques
Tightening Torques

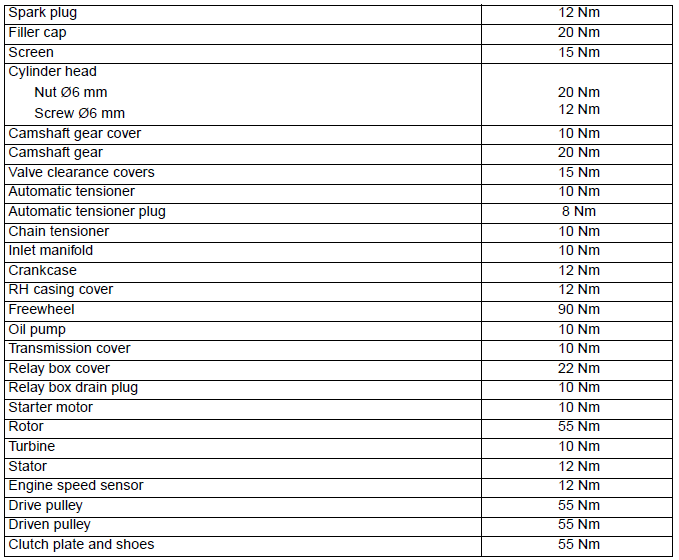

Engine part

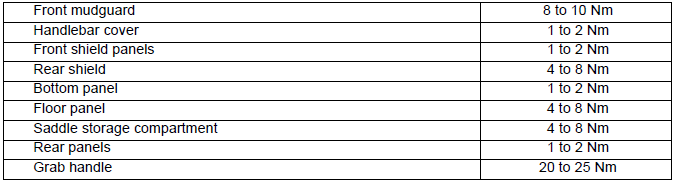

Body panels

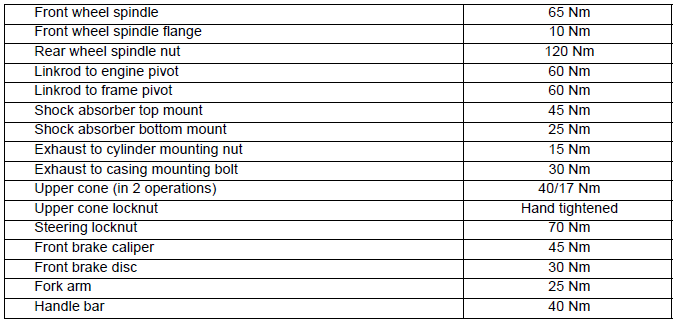

Cycle part

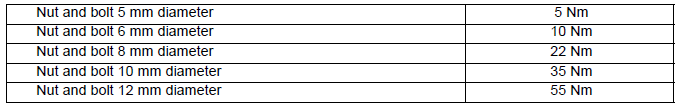

Standard

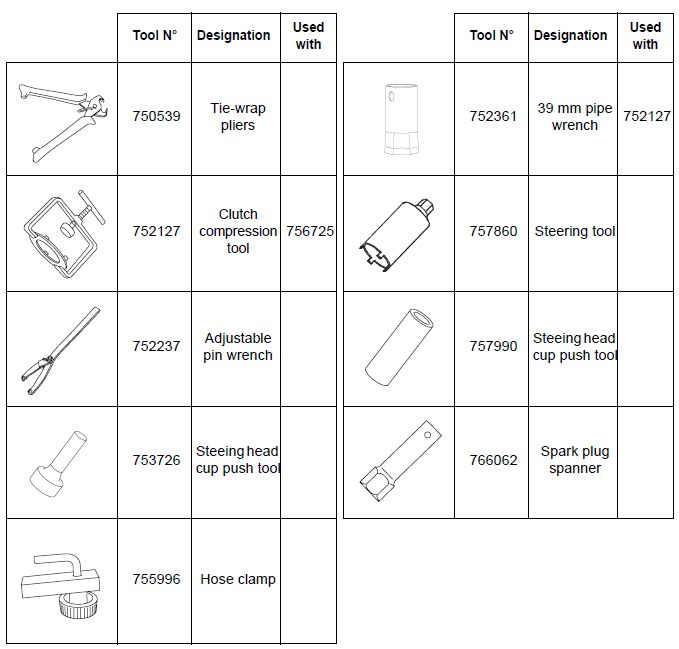

Special Tools
Standard Tools
Wrenches with
interchangeable end fittings for valve clearance adjustment
Type : Marolotest P/N 500140

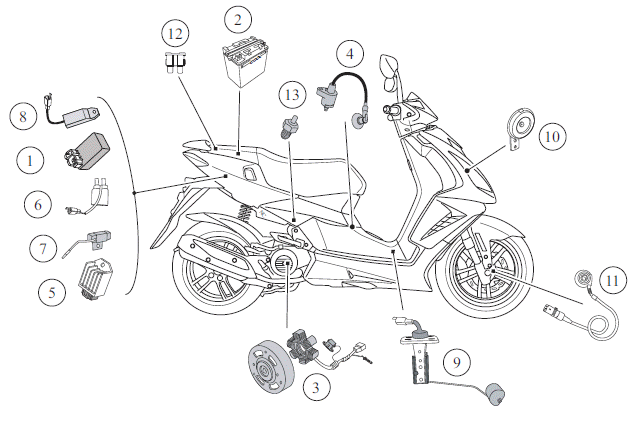

Location of Components
- CDI unit
- Battery
- Ignition sensor
- HT coil
- Regulator
- Starter motor relay
- Starter resistor
- Temperature control unit
- Fuel gauge
- Horn
- Speed sensor
- Fuses
- Resistor warming carburator
