Kymco Agility 50 - Service manual > Starting System

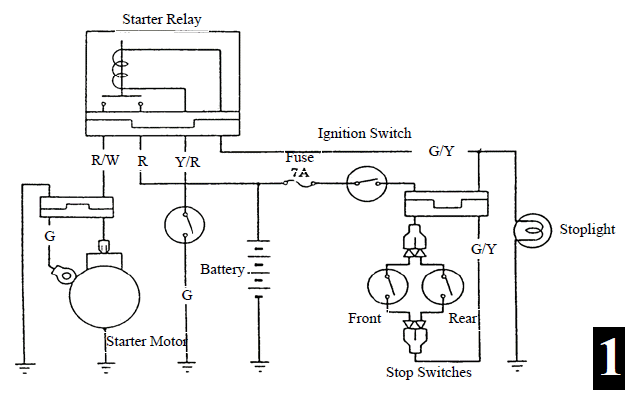

Starting System

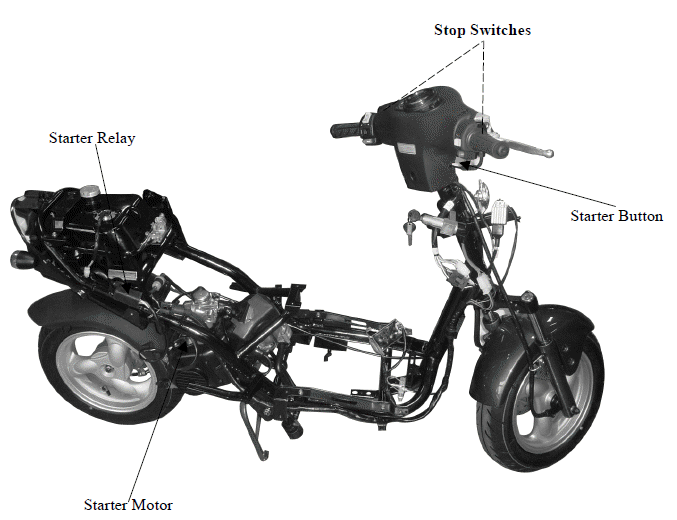

- Starter Relay
- Stop Switches
- Starter Button
- Starter Motor
SERVICE INFORMATION
GENERAL INSTRUCTIONS
- The removal of starter motor can be accomplished with the engine installed.
SPECIFICATIONS
TROUBLESHOOTING
Starter motor won't turn
- Fuse burned out
- Weak battery
- Faulty ignition switch
- Faulty starter clutch
- Faulty front or rear stop switch
- Faulty starter relay
- Poorly connected, broken or shorted wire
- Faulty starter motor
Lack of power
- Weak battery
- Loose wire or connection
- Foreign matter stuck in starter motor or gear
Starter motor rotates but engine does not start
- Faulty starter clutch
- Starter motor rotates reversely
- Weak battery
