Kymco Agility 50 - Service manual > Torque values

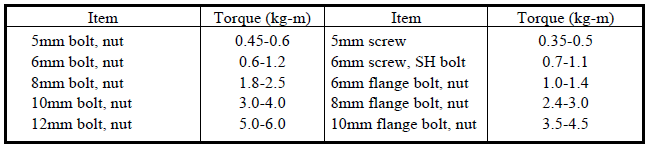

STANDARD TORQUE VALUES

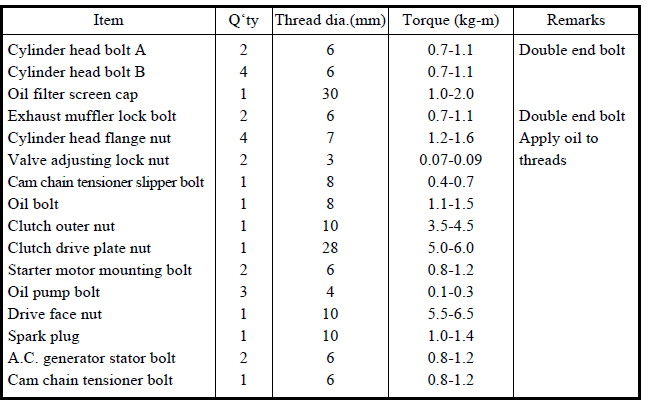

Torque specifications listed below are for important fasteners.

ENGINE

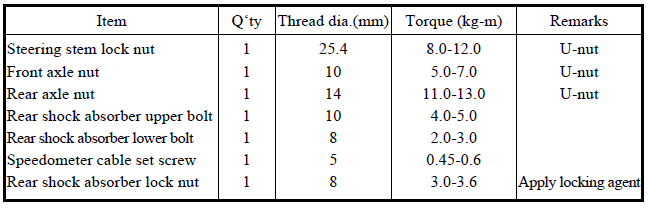

FRAME

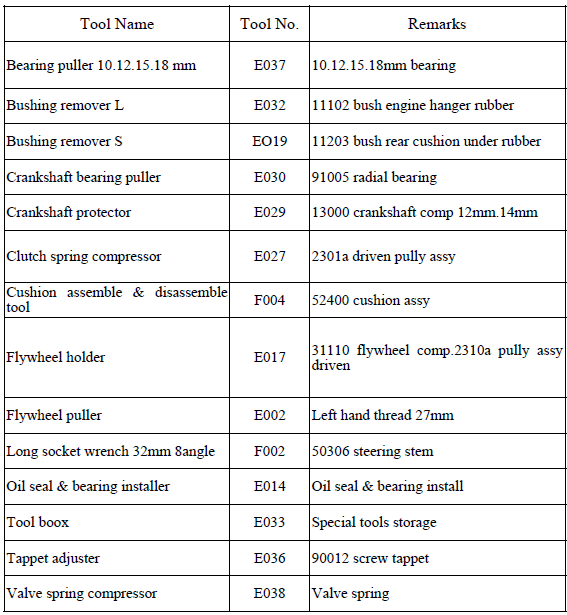

SPECIAL TOOLS

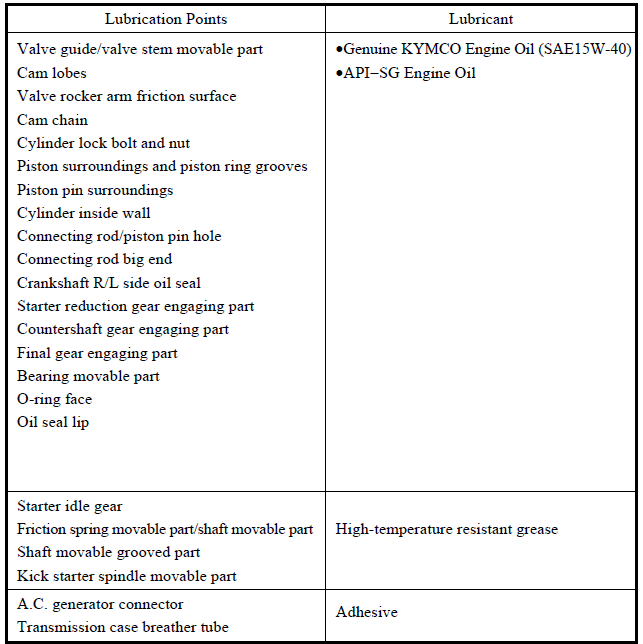

LUBRICATION POINTS

ENGINE

FRAME

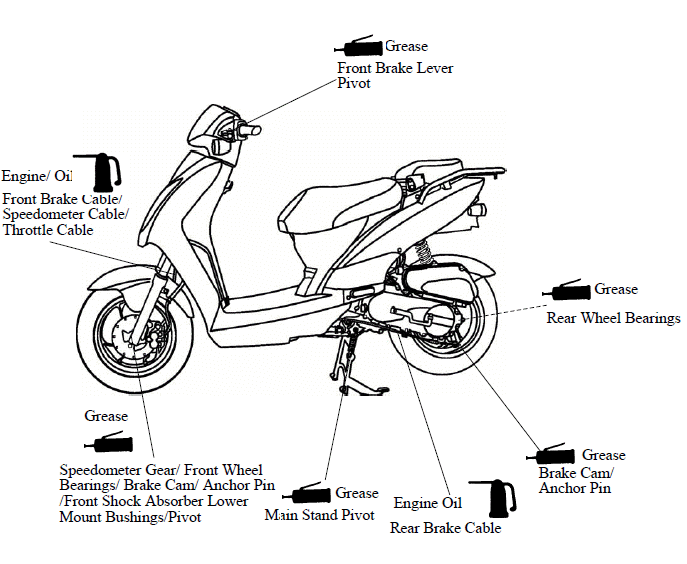

The following is the lubrication points for the frame.

Use general purpose grease for parts not listed.

Apply clean engine oil or grease to cables and movable parts not specified.

This will avoid abnormal noise and rise the durability of the motorcycle.

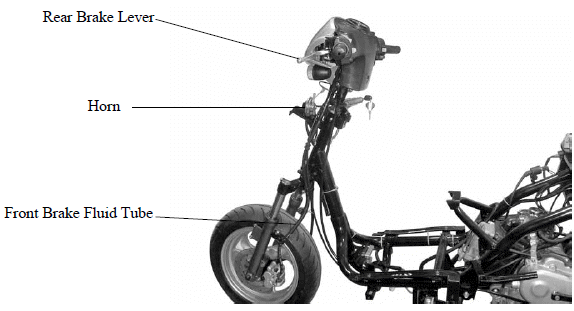

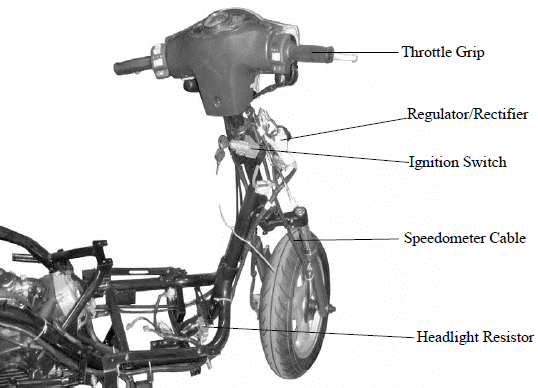

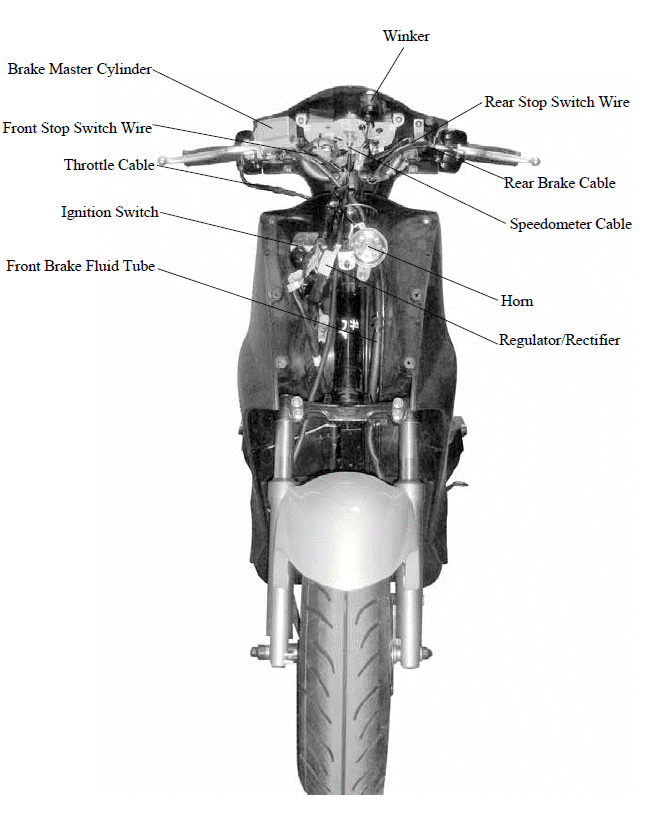

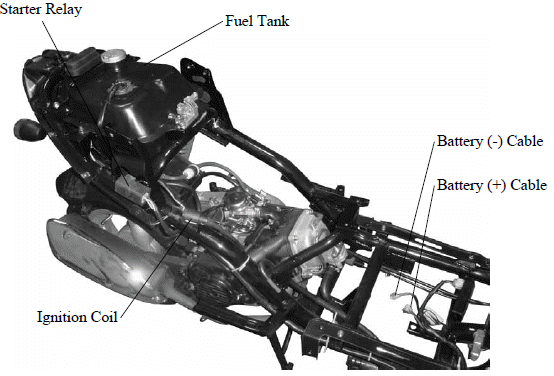

CABLE & HARNESS ROUTING

• Brake Master Cylinder
• Front Stop Switch Wire
• Throttle Cable
• Ignition Switch
• Front Brake Fluid Tube
• Winker
• Rear Stop Switch Wire
• Rear Brake Cable
• Speedometer Cable
• Horn
• Regulator/Rectifier

• Throttle Grip
• Regulator/Rectifier
• Ignition Switch
• Speedometer Cable
• Headlight Resistor

• Rear Brake Lever
• Horn
• Front Brake Fluid Tube

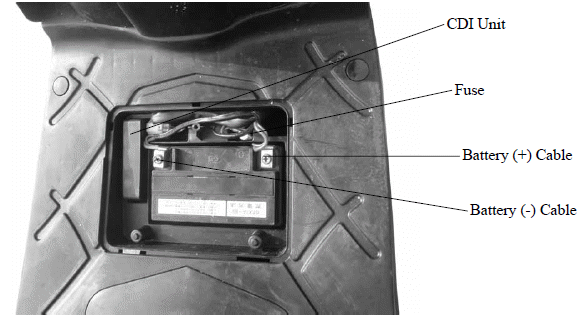

• CDI Unit
• Fuse
• Battery (+) Cable
• Battery (-) Cable

• Starter Relay
• Fuel Tank
• Ignition Coil
• Battery (-) Cable
• Battery (+) Cable

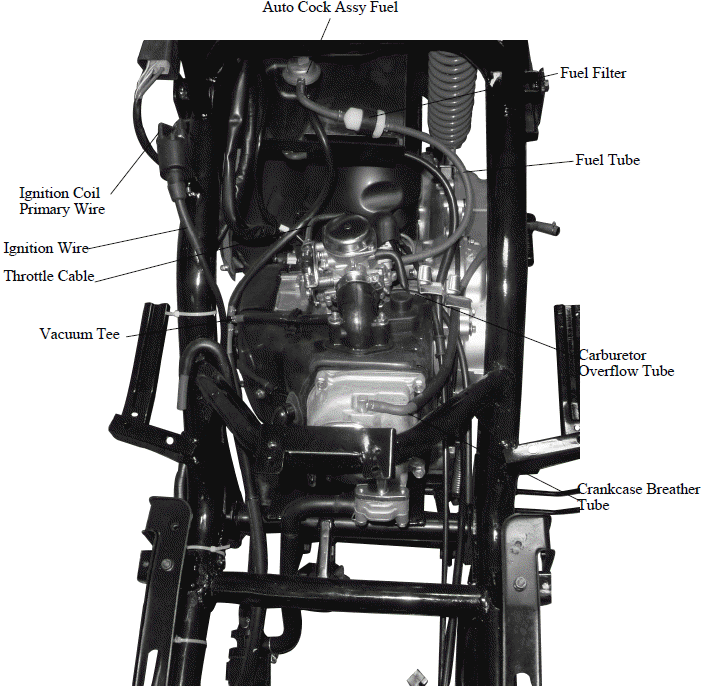

• Auto Cock Assy Fuel
• Fuel Filter
• Fuel Tube
• Carburetor Overflow Tube
• Crankcase Breather Tube
• Ignition Coil Primary Wire
• Ignition Wire
• Throttle Cable
• Vacuum Tee

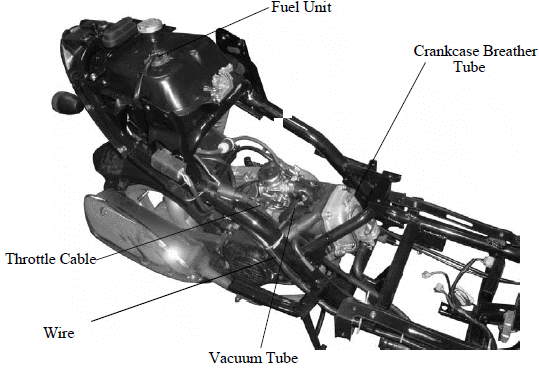

• Fuel Unit
• Crankcase Breather Tube
• Throttle Cable
• Wire
• Vacuum Tube

• Vacuum Tube
• Ignition Coil

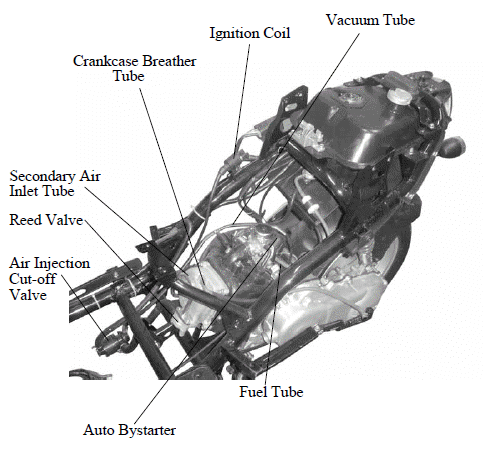

• Crankcase Breather Tube
• Secondary Air Inlet Tube
• Reed Valve
• Air Injection Cut-off Valve
• Auto Bystarter
• Fuel Tube

WIRING DIAGRAM

TROUBLESHOOTING

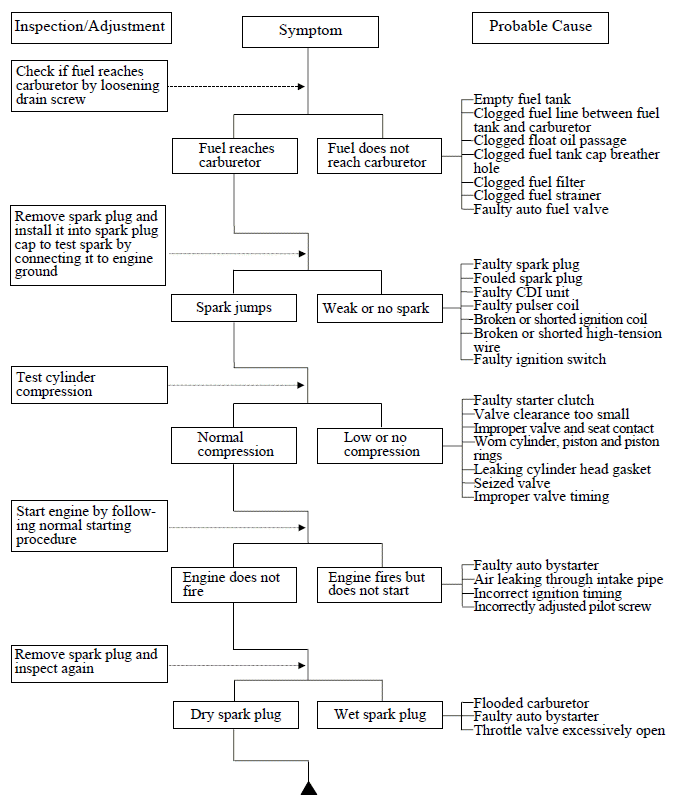

ENGINE WILL NOT START OR IS HARD TO START

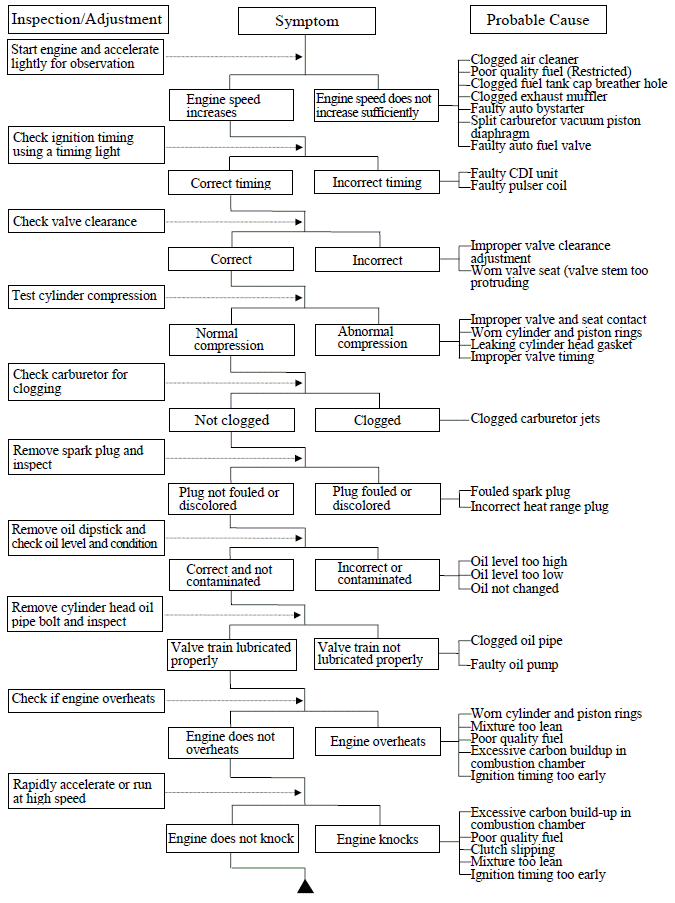

ENGINE LACKS POWER

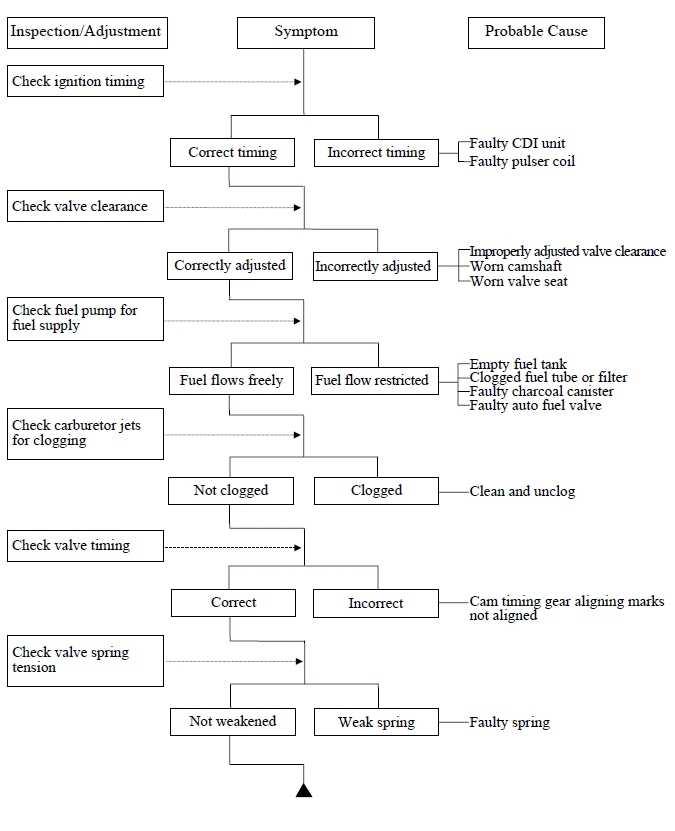

POOR PERFORMANCE (ESPECIALLY AT IDLE AND LOW SPEEDS)

POOR PERFORMANCE (AT HIGH SPEED)

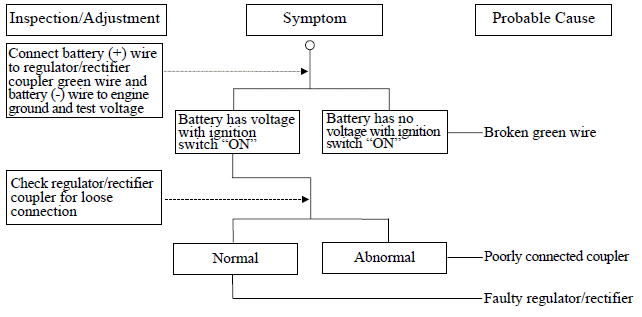

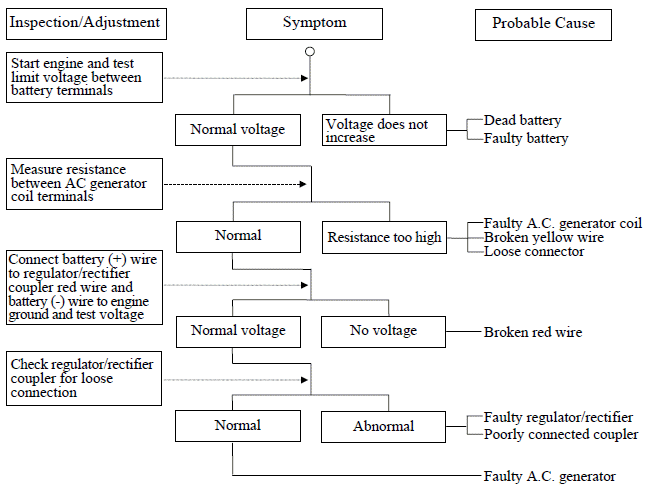

POOR CHARGING (BATTERY OVER DISCHARGING OR OVERCHARGING)

Undercharging

Overcharging

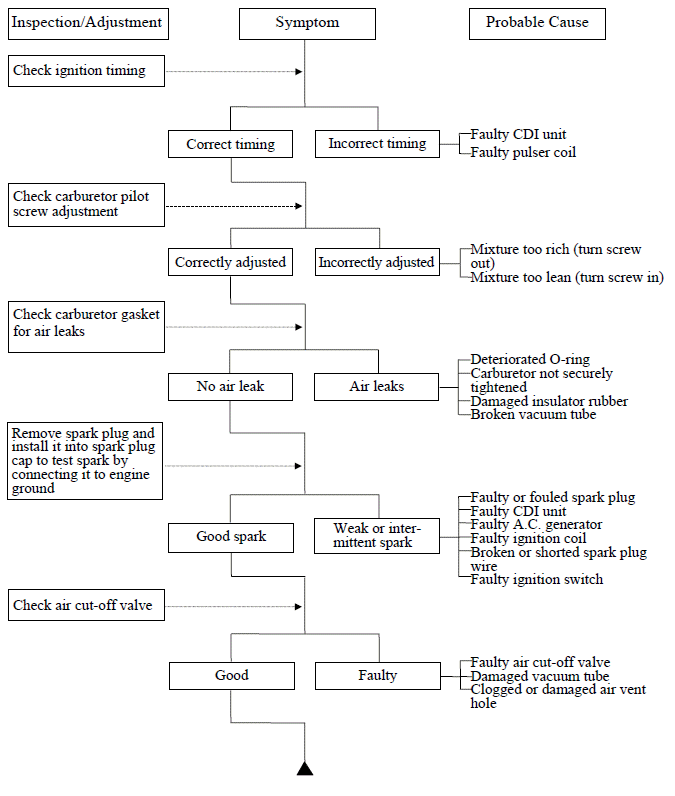

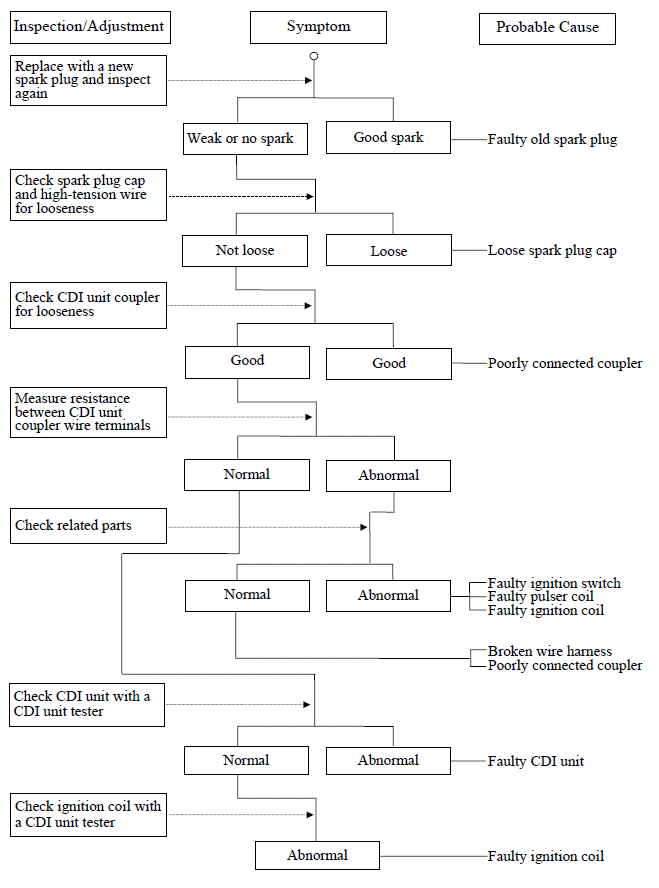

NO SPARK AT SPARK PLUG
