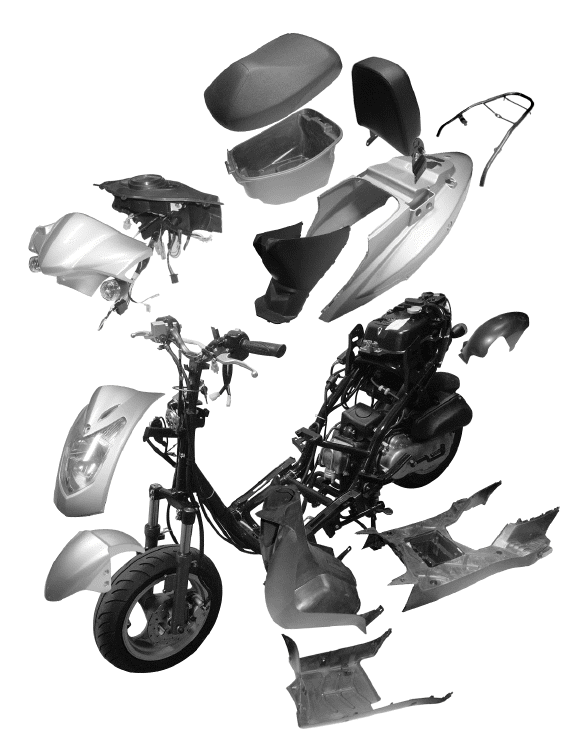

SCHEMATIC DRAWING

SERVICE INFORMATION

GENERAL INSTRUCTIONS

• When removing frame covers, use special care not to pull them by force because the cover joint claws may be damaged.

Items Related for Removal

• Handlebar front cover
      Handlebar rear cover
      Headlight wire connector
• Handlebar rear cover
      Speedometer cable and instrument light wire connectors, etc.
• Frame body cover
      Met-in box, rear grip, rear turn signal lights, floor board
• Floor board
      Frame body cover
      Battery and wire connectors
• Front tool box
      Front cover, floor board

TORQUE VALUES

Exhaust muffler joint lock nut 1.0~1.4kgf-m
Exhaust muffler lock bolt 3.0~3.6kgf-m

• Frame covers
• Bottom protector cover removal
