Kymco Agility 50 - Service manual > Bottom protector cover removal

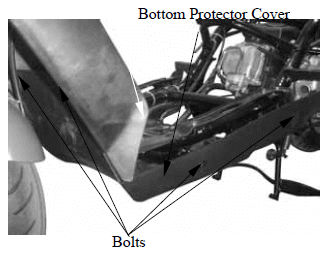

Remove the sixbolts on the bottom protector cover.

Remove the bottom protector cover.

LEG SHIELD REMOVAL

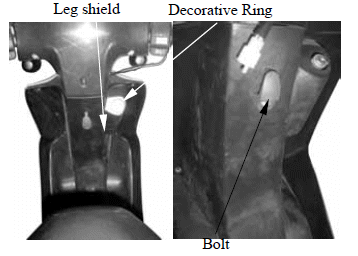

Remove the bolt leg shield.

Remove the ignition switch decorative ring.

Remove the leg shield.

FRONT FENDER REMOVAL

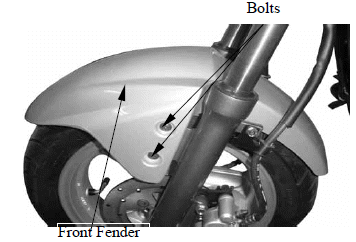

Remove the two bolts attaching the front fender bracket.

Remove the front fender.

EXHAUST MUFFLER REMOVAL

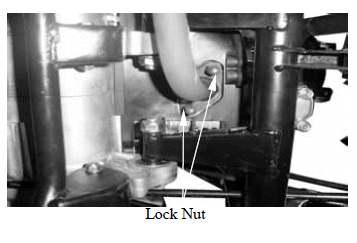

Remove the two exhaust muffler joint lock nuts.

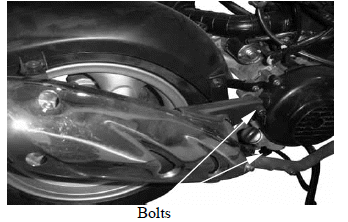

Remove the two exhaust muffler lock bolts.

Remove the exhaust muffler.

Remove the exhaust muffler joint packing collar.

When installing, first install the exhaust muffler packing collar and then install the exhaust muffler.

First install and tighten the exhaust muffler joint lock nuts. Then, install and tighten the exhaust muffler lock bolts.

Torques:

• Exhaust muffler lock bolt: 3.0~3.6kgf-m
• Exhaust muffler joint lock nut: 1.0~1.4kgf-m

Be sure to install a new exhaust muffler packing collar.
