FRONT COVER REMOVAL

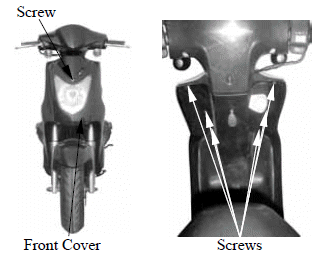

Remove the screw on the front of the front cover.

Remove the six screws on the back of the front cover.

Remove the front cover.

The installation sequence is the reverse of removal.

HANDLEBAR FRONT/REAR COVER REMOVAL

HANDLEBAR FRONT COVER REMOVAL

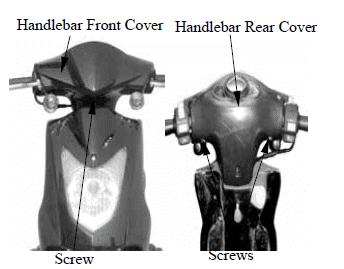

Remove the handlebar front cover screw.

Remove the two screws attaching the handlebar front cover.

Disconnect the headlight wire connector and remove the handlebar front cover.

HANDLEBAR REAR COVER REMOVAL

Disconnect the speedometer cable, right and left handlebar switch couplers, and the stop switch wire connectors.

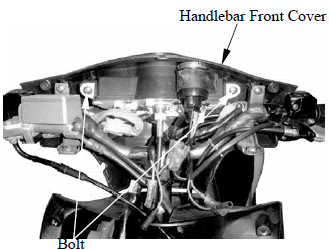

Remove the bolt attaching the handlebar rear cover.

Remove two screws inside the handlebar rear cover and remove the handlebar rear cover.

The installation sequence is the reverse of removal.

MET-IN BOX REMOVAL

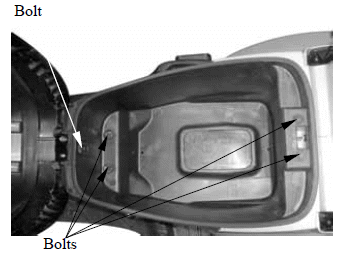

Open the seat and remove the two nuts and three bolt attaching the met-in box.

Remove the met-in box.

FRAME BODY COVER REMOVAL

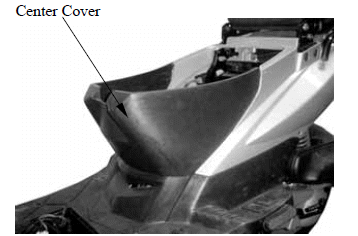

Remove the center cover.

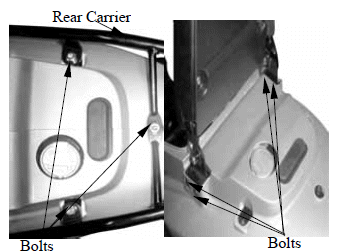

Remove the three bolts attaching the rear carrier.

Remove the rear carrier.

Remove the four bolts on the rear seat.

Remove the rear seat.

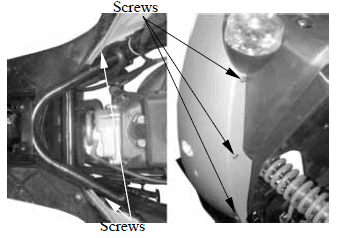

Remove the six screws on the rear part of the frame body cover.

Remove the two screws on the front of the frame body cover.

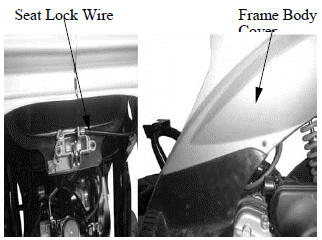

Disconnect the seat lock wire.

Remove the frame body cover.

The installation sequence is the reverse of remove Remove the three bolts attaching each of the right and left side covers.

Remove the right and left side covers.

During removal, do not pull the joint claws forcedly to avoid damage.

When installing, be sure to connect the seat lock wire.

FLOOR BOARD REMOVAL

Remove the rear carrier and rear seat. Remove the met-in box.

Remove the frame body cover.

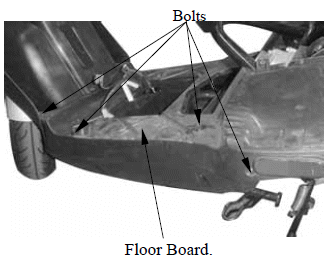

Remove the eight bolts attaching the floor board.

Remove the floor board.
