Kymco Agility 50 - Owner's Manual > Brake lever free play inspection&adjustment

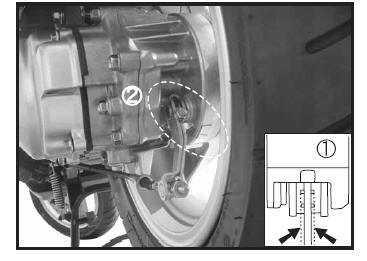

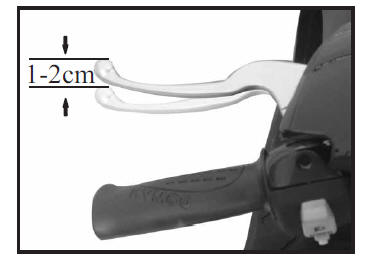

Adjust the rear brake pedal free play with the brake adjusting nuts.

After adjustment, fully apply the rear brake pedal and check if the free play is within the specified value (1-2cm).

CAUTION:

After the brake is adjusted, align the groove of adjusting nut with the pin in order to avoid accident and danger during riding.

Brake shoe inspection

When the brake lever is fully applied, if the mark " △" on the brake indicator aligns with the reference mark"△ " on the brake panel, it means the brake shoe is worn out. Go to our designated distributors or service stations for brake shoe replacing.

Brake shoe service limit: Front Rear

CAUTION:

Brake shoe will be worn more quickly if the brake lever is always applied lightly during riding.

Horn/lights inspection

Turn the ignition switch to the "ON" position and push the horn button to check if it sounds.

Headlight/Taillight Inspection: Start the engine and turn on the headlight switch to check if the headlight and taillight are good and check the light shells for dirt and damage.

Stoplight Inspection: Apply the front and rear brake levers respectively to check if the stoplight is good. And also check the stoplight shell for dirt and damage.

Turn Signal Light Inspection: Operate the turn signal switch to make sure whether the right/left front and rear turn signal lights can wink and buzz. Also check the light shells for dirt and damage.

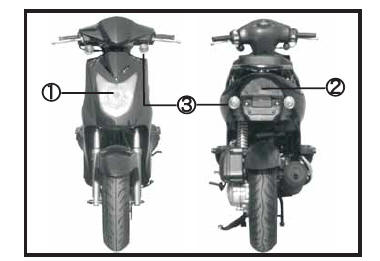

1. Headlight
2. Taillight/ Stoplight
3. Turn signal light

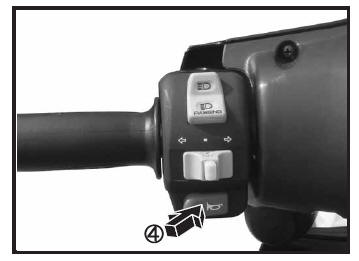

4. Horn button

CAUTION:

Replace any dirty or damaged lights with new ones to avoid danger during riding.

Front/rear shock absorber inspection

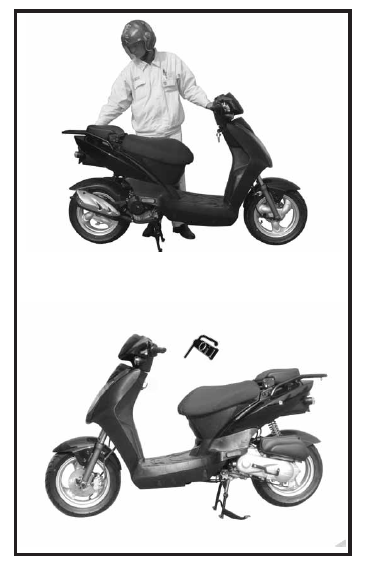

Check the condition of the front/rear shock absorbers by pressing down on the handlebar and seat several times.

Check the condition of the front/rear shock absorbers by pressing down on the handlebar and seat several times.

Brake performance inspection

Fully apply the front and rear brake lever pedal and move the motorcycle forward to see if the braking effect is good.

Rear mirror angle check

Sit on the motorcycle uprightly and make a viewing test of the rear mirror angle.

License plate check

Check the license plate for dirt and damage, then tighten it.

Reflector check

Check the reflector for dirt and damage.

Previous abnormal parts inspection

Make sure that the previous abnormal parts are repaired.

Lubrication point check

Visually check if all motorcycle lubrication points are lubricated properly.
