Kymco Agility 50 - Owner's Manual > Engine starting methods

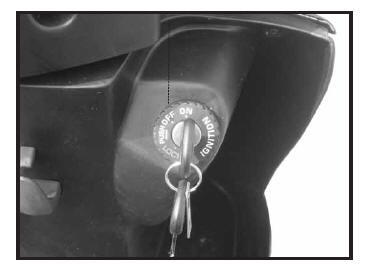

Turn the ignition switch "on"

Unlock the steering handlebar.

Turn the ignition switch to the "ON" position.

CAUTION:

Check the gasoline volume and engine oil level before starting the engine.

Be sure to erect the main stand while starting the engine.

Before starting the engine,the side stand shall be kicked up to secure safety.

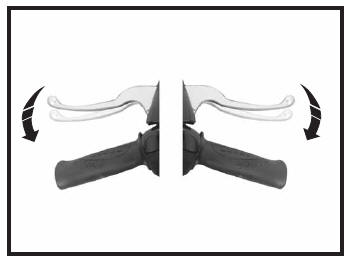

Lock the rear wheel

Apply the rear brake lever to connect the power for starting.

CAUTION:

In order to prevent the motorcycle from rushing out at high speed, make sure to lock the rear wheel.

If free play of the rear brake lever is incorrect,the rear wheel cannot be braked and it will cause danger easily.

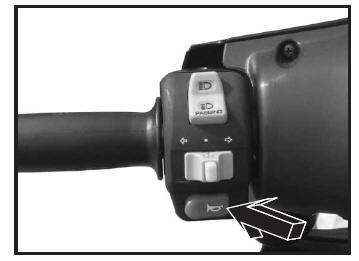

Use the electric starter button

Push the electric starter button without rotating the throttle grip.

If the engine fails to start after the electric starter button is pressed for 3-4 seconds, rotate the throttle grip for 1/8-1/4 turn to facilitate starting.

When the motorcycle is not used for a long time or the fuel tank is empty, if the engine is still hard to start after the fuel tank is refilled with gasoline, push down the choke knob, slightly turn the throttle grip and push the electric starter button for several times to start the engine.

In order to avoid battery overcharge, do not push the starter button more than 5 seconds.

If the engine does not start after the electric starter button is pushed for 5 seconds, wait for more than 5 seconds and then push the button again or start the engine by the kick lever.

CAUTION:

Don't push the electric starter button while the engine is running; otherwise the engine will be damaged.

When starting the engine,the rear brake lever must be applied to connect power and the stoplight will come on when power is connected.

• Start with the kick lever
• Correct sitting position
