Peugeot Speedfight - Workshop Manual > Checking the drive pulley

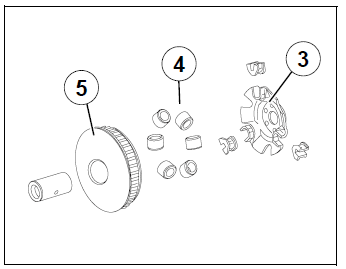

• Remove the holder (3) and its 3 plastic guides.
• Remove the moving flange (5) 6 bearings (4).
• The bearings must be changed if they show major signs of wear.
• The guides shall be replaced if they show signs of wear.

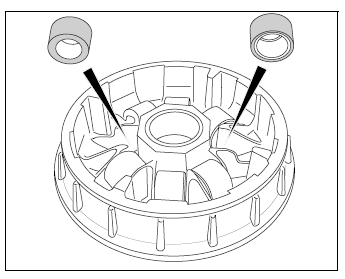

• When refitting, respect the way the rollers are installed.
• Grease the moving flange bore lightly (high temperature grease).

Checking the drive belt

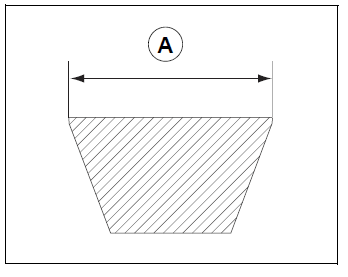

• Measure the width of the belt (A).

Minimum width: 17.2 mm.

• Make sure the belt is not cracked.

Checking the clutch linings

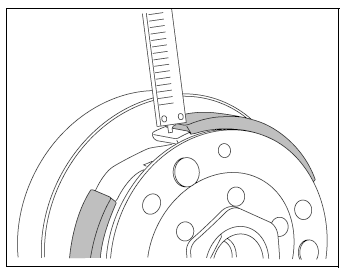

• Using the depth calliper, measure the thickness of the clutch linings.

Mini. thickness 2 mm.

• Make sure surface of the plates in contact with the belt does not show any cracks or signs of abnormal wear.

Replacing the clutch lining assembly

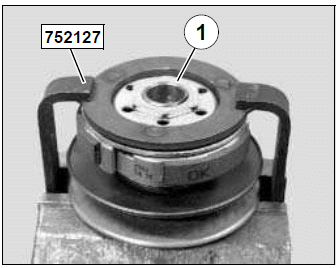

• Compress the clutch drive pulley and driven pulley assembly with the tool P/N 752127 clamped in the jaws of a vice.
• Remove nut (1) using spanner P/N 752361.
• Slacken tool P/N 752127.

Tightening torque: 55 Nm.

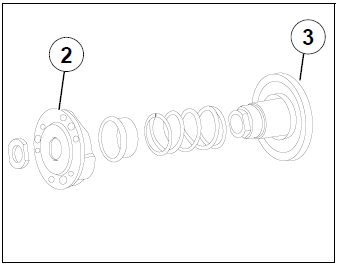

• Remove the clutch lining assembly (2).
• When re-installing the driven pulley, lubricate the needle bearing (3).
