Peugeot Speedfight - Workshop Manual > Removal of the spark plug

• Remove the rear storage compartment.

  See: Procedure 1.

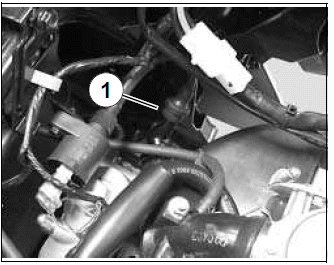

• Disconnect the suppressor (1).
• Remove the spark plug using tool P/N 766062.

  Essential precautions: When reinstalling, srew in the spark plug (a few turns) by hand.

• Tighten the spark plug.

Tightening torque: 12 Nm.

Replacing the air filter.

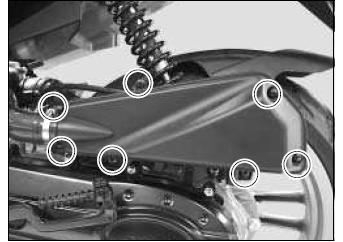

• Remove the air filter cover (7 bolts) and its seal.

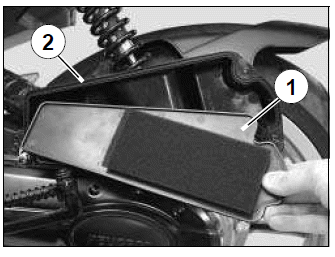

• Remove the air filter (1).
• Clean inside the air filter box.

• Fit a new air filter.
• Fit the gasket (2).
• Install the air filter cover.

  Check the condition of the seals and make sure they are properly positioned.

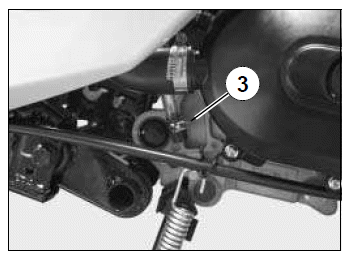

• Remove the inlet silencer drain plug to let humidity and oil drip out (3).

Transmission

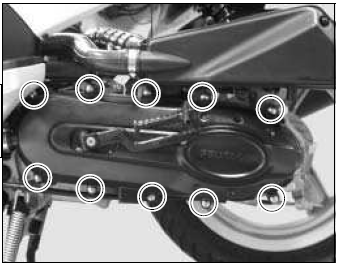

• Remove the transmission cover (10 screw).

Tightening torque: 10 Nm.

• Remove the paper gasket and the two 2 centering pins.

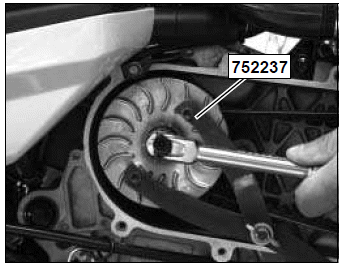

• Hold the fixed flange with tool P/N 752237.
• Remove the fixed flange nut and washer.
• Remove the fixed flange.

Tightening torque: 55 Nm.

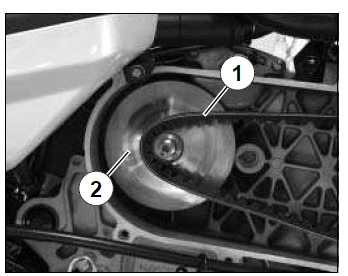

• Remove the belt (1).
• Remove the plastic spacer.
• Remove the drive pulley (2) together with the guide hud.

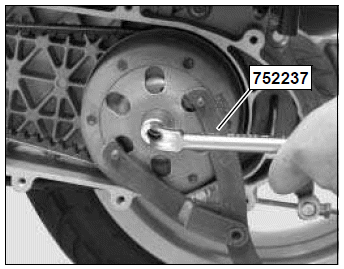

• Lock the clutch drum with the pin wrench P/N 752237.
• Remove the clutch drum and the clutch and drive pulley assembly.

Tightening torque: 55 Nm.
