Vespa Primavera 50 - Service manual > Components arrangement

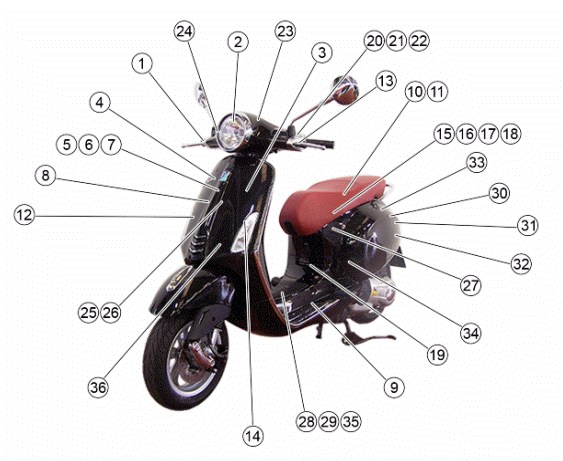

Electrical system / Components arrangement

Electrical system

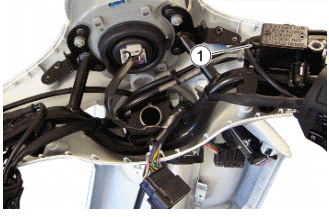

1. RIGHT HAND STOP SWITCH

Electrical system

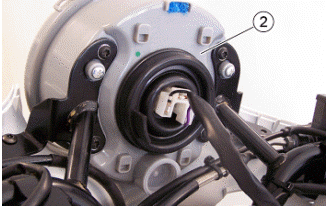

2. HEADLIGHT

Electrical system

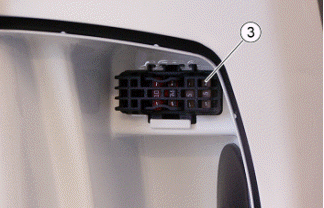

3. SECONDARY FUSES

Electrical system

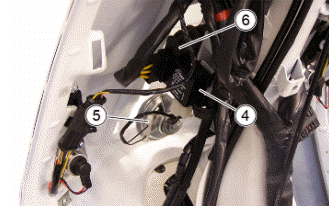

4. TURN INDICATORS INTERMITTENCE

5. HORN

6. VOLTAGE REGULATOR

Electrical system

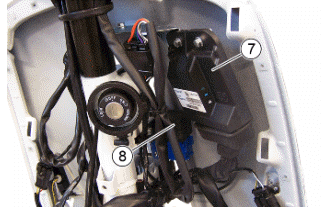

7. INJECTION ECU

8. HEADLIGHT SOLENOID

Electrical system

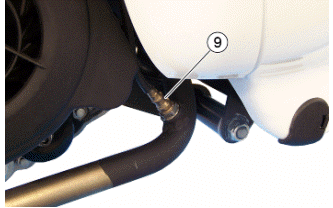

9. LAMBDA PROBE

Electrical system

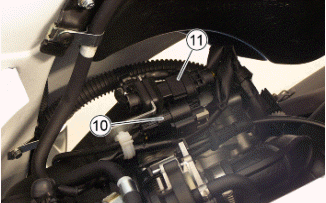

10. LAMBDA PROBE CONNECTOR

11. FLYWHEEL CONNECTOR

Electrical system

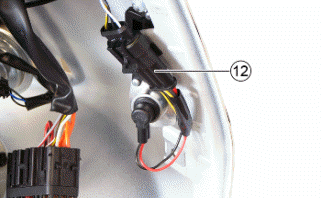

12. FRONT RIGHT TURN INDICATOR

Electrical system

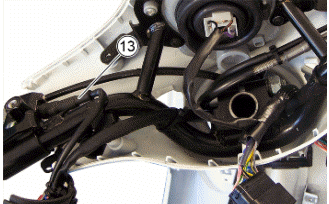

13. LEFT HAND STOP SWITCH

Electrical system

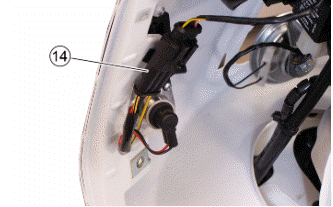

14. FRONT LEFT TURN INDICATOR

Electrical system

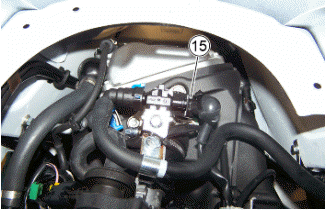

15. INJECTOR

Electrical system

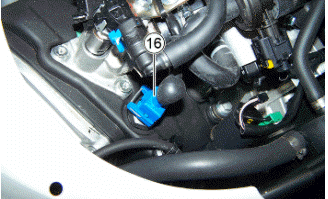

16. ENGINE TEMPERATURE SENSOR

Electrical system

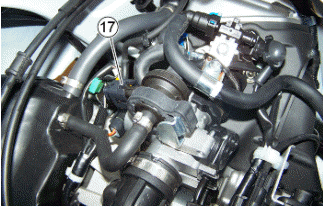

17. IDLE SPEED ADJUSTMENT DEVICE

Electrical system

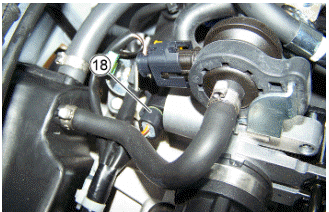

18. THROTTLE POSITION SENSOR

Electrical system

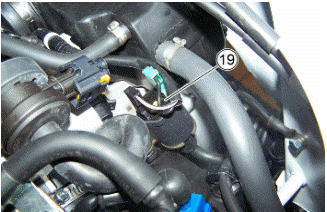

19. H.V. COIL

Electrical system

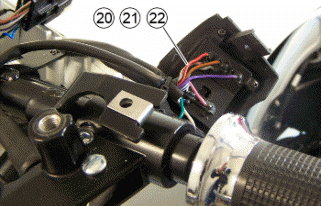

20. HORN SWITCH

21. TURN INDICATOR SWITCH

22. HIGH/LOW BEAM LIGHTS SWITCH

Electrical system

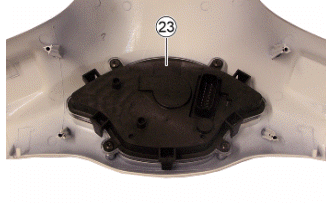

23. INSTRUMENT PANEL

Electrical system

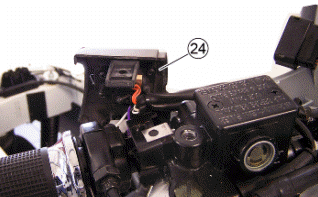

24. STARTER BUTTON

Electrical system

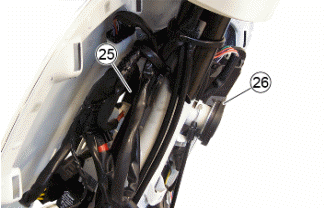

25. IGNITION SWITCH

26. IMMOBILIZER AERIAL

Electrical system

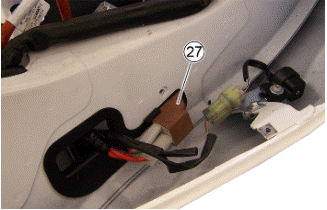

27. STARTER RELAY

Electrical system

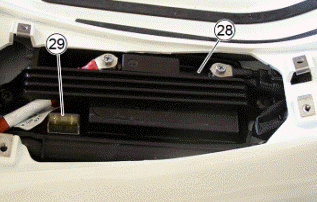

28. BATTERY

29. MAIN FUSE

Electrical system

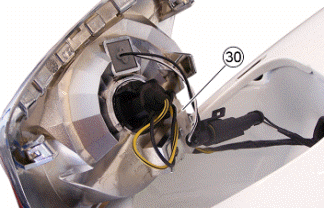

30. REAR LIGHT

Electrical system

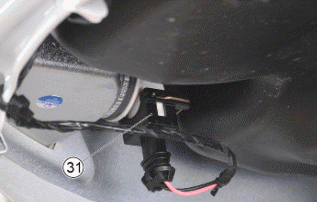

31. REAR LEFT TURN INDICATOR

Electrical system

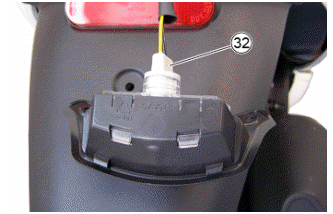

32. LICENSE PLATE LIGHT

Electrical system

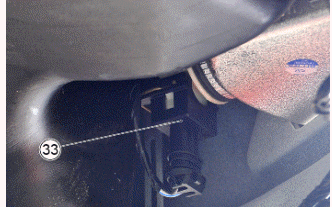

33. REAR RIGHT TURN INDICATOR

Electrical system

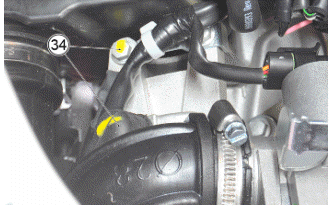

34. STARTER MOTOR

Electrical system

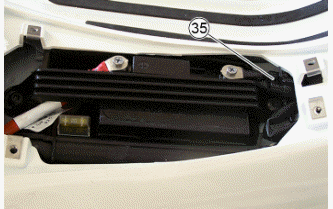

35. DIAGNOSTICS SOCKET

Electrical system

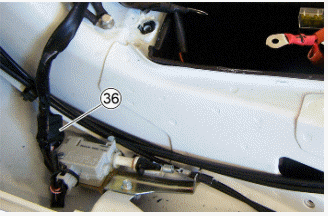

36. PRE-INSTALLATION FOR ANTI-THEFT DEVICE

Electrical system

Ground points

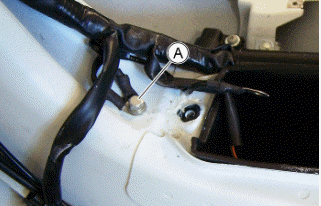

On the vehicle there is a ground point on the chassis marked with the letter "A", remove the footrest to access it.

Electrical system

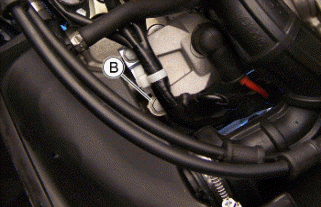

There is another ground point "B" on the starter motor.

Electrical system

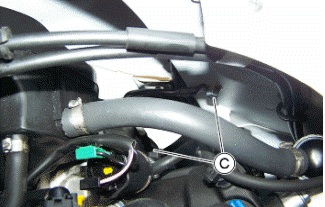

On the left side of the chassis, under the footrest, there is the chassis-engine ground lead "C".

Electrical system
