Vespa Primavera 50 - Service manual > Maintenance
N.B.
THE UNITS OF MEASUREMENT CONTAINED IN THIS CHAPTER ARE EXPRESSED IN TERMS OF THE DECIMAL METRIC SYSTEM. TO REFER TO THE UNIT OF MEASUREMENT EXPRESSED IN TERMS OF THE ANGLO-SAXON SYSTEM, SEE THE "CHARACTERISTICS" CHAPTER.
Maintenance chart

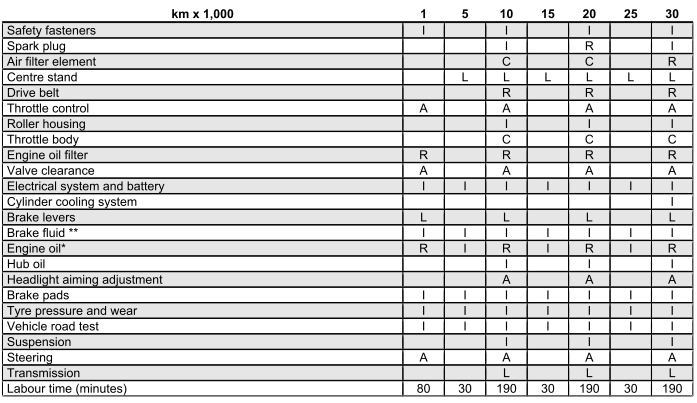

SCHEDULED MAINTENANCE TABLE
I: CHECK AND CLEAN, ADJUST, LUBRICATE OR REPLACE, IF NECESSARY C: CLEAN; R: REPLACE; A: ADJUST; L: LUBRICATE
* Check level every 2,500 km
** Replace every 2 years
Versions for market USA-CND

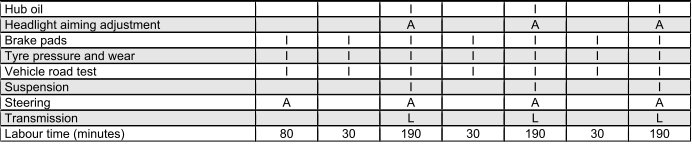

SCHEDULED MAINTENANCE TABLE
I: CHECK AND CLEAN, ADJUST, LUBRICATE OR REPLACE, IF NECESSARY C: CLEAN; R: REPLACE; A: ADJUST; L: LUBRICATE
* Check level every 1.550 mi (2,500 km)
** Replace every 2 years
See also:
Vespa Primavera 50 - Service manual > Characteristics
Rules This section describes general safety rules for any maintenance operations performed on the vehicle. Safety rules If work can only be done on the vehicle with the engine running, make sure that the premises are well ventilated, using special extractors if necessary; never let the engine run in an enclosed area. Exhaust fumes are toxic. The battery electrolyte contains sulphuric acid. Protect your eyes, clothes and skin. Sulphuric acid is highly corrosive; in the event of contact with your eyes or skin, rinse thoroughly with abundant water and seek immediate medical attention. The battery produces hydrogen, a gas that can be highly explosive. Do not smoke and avoid sparks or flames near the battery, especially when charging it. Fuel is highly flammable and it can be explosive given some conditions. Do not smoke in the working area, and avoid naked flames or sparks. Clean the brake pads in a well-ventilated area, directing the jet of compressed air in such a way that you do not breathe in the dust produced by the wear of the friction material. Even though the latter contains no asbestos, inhaling dust is harmful.
Vespa Primavera 50 - Service manual > Spark plug
Position the vehicle on the stand Remove the spark plug external inspection door by undoing the indicated screw Disconnect the spark plug H.V. cable cap. Unscrew the spark plug using the wrench supplied.
